Thrust Miniature Bearings

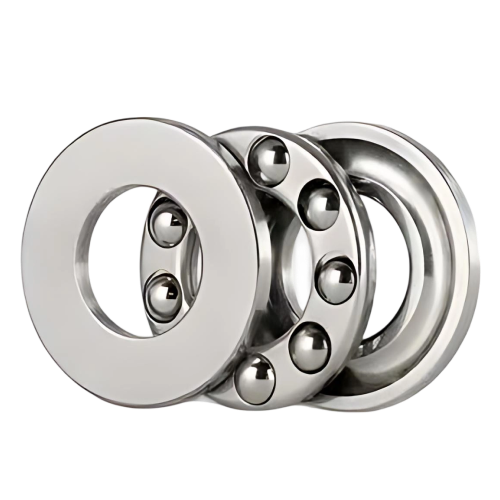

Thrust miniature bearings are compact, two-washer-and-ball assemblies designed solely to support one-direction axial loads in high-speed, low-friction systems. Typical bores span 2–10 mm, accuracy ranges up to ABEC-9,. They are the ideal choice for small-scale devices that require smooth, dedicated thrust support.

22 results

display in:

Metric

Imperial

Part Number	Bore Diameter	Outer Diameter	Outer Ring Inner Diameter	Inner Ring Outer Diameter	Dynamic Axial Load	Static Axial Load	Weight
F3-8M	3 mm	8 mm	3.2 mm	7.8 mm	994 N	932 N	0.84 g
F4-9M	4 mm	9 mm	4.2 mm	8.8 mm	945 N	932 N	1.17 g
F4-10M	4 mm	10 mm	4.2 mm	9.8 mm	925 N	932 N	1.49 g
F5-12M	5 mm	12 mm	5.2 mm	11.8 mm	1060 N	1240 N	2.1 g
F6-12M	6 mm	12 mm	6.2 mm	11.8 mm	1820 N	2220 N	2.2 g
F6-14M	6 mm	14 mm	6.25 mm	13.8 mm	2160 N	2440 N	3.54 g
F7-13M	7 mm	13 mm	7.2 mm	12.8 mm	1770 N	2220 N	2.42 g
F7-17M	7 mm	17 mm	7.2 mm	16.8 mm	3090 N	3800 N	6.32 g
F8-16M	8 mm	16 mm	8.2 mm	15.8 mm	3920 N	4990 N	3.94 g
F8-19M	8 mm	19 mm	8.2 mm	18.8 mm	3940 N	4970 N	9.27 g
F9-20M	9 mm	20 mm	9.2 mm	19.8 mm	3860 N	4970 N	9.86 g
F10-18M	10 mm	18 mm	10.2 mm	17.8 mm	2470 N	3490 N	5.34 g
F2-6	2 mm	6 mm	-	-	143 N	83 N	0.5 g
F3-8	3 mm	8 mm	-	-	212 N	140 N	1.03 g
F4-9	4 mm	9 mm	-	-	220 N	160 N	1.39 g
F4-10	4 mm	10 mm	-	-	355 N	245 N	1.94 g
F5-11	5 mm	11 mm	-	-	341 N	245 N	2.22 g
F6-12	6 mm	12 mm	-	-	389 N	314 N	2.49 g
F7-15	7 mm	15 mm	-	-	793 N	628 N	4.24 g
F8-16	8 mm	16 mm	-	-	537 N	443 N	4.88 g
F9-17	9 mm	17 mm	-	-	567 N	499 N	5.25 g
F10-18	10 mm	18 mm	-	-	800 N	707 N	6.11 g
