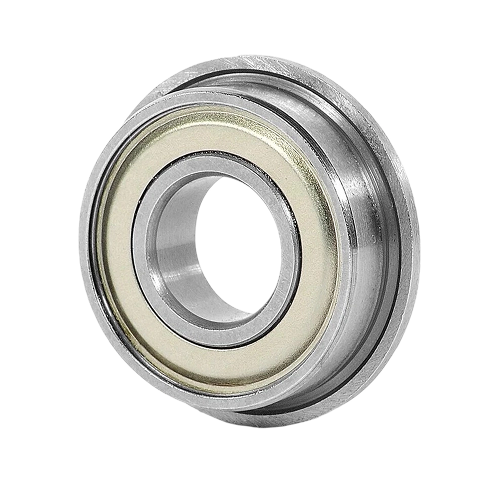

Metric Flanged Miniature Bearings

Metric Flanged Miniature Bearings are small ball bearings designed with a flanged outer ring and metric dimensions, typically with bore sizes ranging from about 1 mm up to 10 mm. The flange is an extended rim or lip on the outer ring, usually made of solid steel, which combines precise small dimensions with a secure flange feature.

303 results
    display in:
    Part Number Bore Diameter Outer Diameter Inner Ring Width Outer Ring Width Weight Flange Outer Diameter Flange Width
    SF681 1 mm 3 mm 1 mm 1 mm 0.04 g 3.8 mm 0.3 mm
    SF691 1 mm 4 mm 1.6 mm 1.6 mm 0.12 g 5 mm 0.5 mm
    SF681X 1.5 mm 4 mm 1.2 mm 1.2 mm 0.09 g 5 mm 0.4 mm
    SF681XZZ 1.5 mm 4 mm 2 mm 2 mm 0.13 g 5 mm 0.6 mm
    SF691X 1.5 mm 5 mm 2 mm 2 mm 0.23 g 6.5 mm 0.6 mm
    F691XZZ 1.5 mm 5 mm 2.6 mm 2.6 mm 0.3 g 6.5 mm 0.8 mm
    SF691XZZ 1.5 mm 5 mm 2.6 mm 2.6 mm 0.29 g 6.5 mm 0.8 mm
    SF601XZZ 1.5 mm 6 mm 3 mm 3 mm 0.46 g 7.5 mm 0.8 mm
    F682 2 mm 5 mm 1.5 mm 1.5 mm 0.16 g 6.1 mm 0.5 mm
    SF682 2 mm 5 mm 1.5 mm 1.5 mm 0.16 g 6.1 mm 0.5 mm
    F682ZZ 2 mm 5 mm 2.3 mm 2.3 mm 0.22 g 6.1 mm 0.6 mm
    SF682ZZ 2 mm 5 mm 2.3 mm 2.3 mm 0.22 g 6.1 mm 0.6 mm
    SMF52 2 mm 5 mm 2 mm 2 mm 0.21 g 6.2 mm 0.6 mm
    MF52ZZ 2 mm 5 mm 2.5 mm 2.5 mm 0.24 g 6.2 mm 0.6 mm
    SMF52ZZ 2 mm 5 mm 2.5 mm 2.5 mm 0.23 g 6.2 mm 0.6 mm
    F692 2 mm 6 mm 2.3 mm 2.3 mm 0.35 g 7.5 mm 0.6 mm
    SF692 2 mm 6 mm 2.3 mm 2.3 mm 0.35 g 7.5 mm 0.6 mm
    F692ZZ 2 mm 6 mm 3 mm 3 mm 0.43 g 7.5 mm 0.8 mm
    SF692ZZ 2 mm 6 mm 3 mm 3 mm 0.43 g 7.5 mm 0.8 mm
    SF692TTS 2 mm 6 mm 3 mm 3 mm 0.43 g 7.5 mm 0.8 mm
    SMF62 2 mm 6 mm 2.5 mm 2.5 mm 0.35 g 7.2 mm 0.6 mm
    MF62ZZ 2 mm 6 mm 2.5 mm 2.5 mm 0.42 g 7.2 mm 0.6 mm
    SMF72ZZS 2 mm 7 mm 3 mm 3 mm 0.57 g 8.2 mm 0.6 mm
    SF602ZZS 2 mm 7 mm 3.5 mm 3.5 mm 0.69 g 8.5 mm 0.9 mm
    SF682X 2.5 mm 6 mm 1.8 mm 1.8 mm 0.26 g 7.1 mm 0.5 mm
    F682XZZ 2.5 mm 6 mm 2.6 mm 2.6 mm 0.37 g 7.1 mm 0.8 mm
    SF682XZZ 2.5 mm 6 mm 2.6 mm 2.6 mm 0.37 g 7.1 mm 0.8 mm
    SF692XZZS 2.5 mm 7 mm 3.5 mm 3.5 mm 0.68 g 8.5 mm 0.9 mm
    SF602X 2.5 mm 8 mm 2.8 mm 2.8 mm 0.74 g 9.5 mm 0.7 mm
    SF602XZZ 2.5 mm 8 mm 4 mm 4 mm 0.98 g 9.5 mm 0.9 mm
    F698ZZ 8 mm 19 mm 6 mm 6 mm 7.85 g 22 mm 1.5 mm
    SF698ZZ 8 mm 19 mm 6 mm 6 mm 7.76 g 22 mm 1.5 mm
    F698 2RS 8 mm 19 mm 6 mm 6 mm 7.76 g 22 mm 1.5 mm
    SF698 2RS 8 mm 19 mm 6 mm 6 mm 7.67 g 22 mm 1.5 mm
    F698 2RU 8 mm 19 mm 6 mm 6 mm 7.76 g 22 mm 1.5 mm
    SF698 2RU 8 mm 19 mm 6 mm 6 mm 7.67 g 22 mm 1.5 mm
    F608 8 mm 22 mm 7 mm 7 mm 12.3 g 25 mm 1.5 mm
    SF608 8 mm 22 mm 7 mm 7 mm 12.1 g 25 mm 1.5 mm
    F608ZZ 8 mm 22 mm 7 mm 7 mm 12.9 g 25 mm 1.5 mm
    SF608ZZ 8 mm 22 mm 7 mm 7 mm 12.8 g 25 mm 1.5 mm
    F608 2RS 8 mm 22 mm 7 mm 7 mm 13.0 g 25 mm 1.5 mm
    SF608 2RS 8 mm 22 mm 7 mm 7 mm 12.8 g 25 mm 1.5 mm
    F608 2RU 8 mm 22 mm 7 mm 7 mm 13 g 25 mm 1.5 mm
    SF608 2RU 8 mm 22 mm 7 mm 7 mm 12.8 g 25 mm 1.5 mm
    SF689 9 mm 17 mm 4 mm 4 mm 3.82 g 19 mm 1 mm
    F689ZZ 9 mm 17 mm 5 mm 5 mm 4.58 g 19 mm 1.1 mm
    SF689ZZ 9 mm 17 mm 5 mm 5 mm 4.52 g 19 mm 1.1 mm
    F689 2RS 9 mm 17 mm 5 mm 5 mm 4.61 g 19 mm 1.1 mm
    SF689 2RS 9 mm 17 mm 5 mm 5 mm 4.56 g 19 mm 1.1 mm
    F699 9 mm 20 mm 6 mm 6 mm 8.27 g 23 mm 1.5 mm
    SF699 9 mm 20 mm 6 mm 6 mm 8.17 g 23 mm 1.5 mm
    F699ZZ 9 mm 20 mm 6 mm 6 mm 8.77 g 23 mm 1.5 mm
    SF699ZZ 9 mm 20 mm 6 mm 6 mm 8.67 g 23 mm 1.5 mm
    F699 2RS 9 mm 20 mm 6 mm 6 mm 8.65 g 23 mm 1.5 mm
    SF699 2RS 9 mm 20 mm 6 mm 6 mm 8.55 g 23 mm 1.5 mm
    F699 2RU 9 mm 20 mm 6 mm 6 mm 8.66 g 23 mm 1.5 mm
    SF699 2RU 9 mm 20 mm 6 mm 6 mm 8.56 g 23 mm 1.5 mm
    F609 9 mm 24 mm 7 mm 7 mm 14.7 g 27 mm 1.5 mm
    SF609 9 mm 24 mm 7 mm 7 mm 14.5 g 27 mm 1.5 mm
    F609ZZ 9 mm 24 mm 7 mm 7 mm 15.5 g 27 mm 1.5 mm
