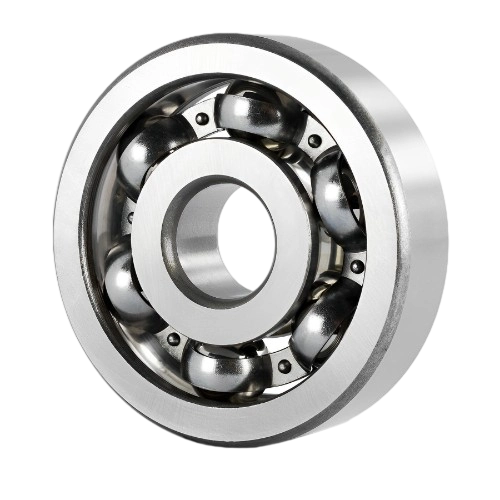

What Is Ball Bearing?
Ball bearings are small, hardened steel balls that roll between two circular tracks, called races, to minimize friction in rotating machinery. They support loads perpendicular (radial) and along (axial) the axis of rotation, making them essential for efficient operation.
Where Are They Used?
Ball bearings are found in a wide range of applications, including car engines, airplane components, skateboards, and precision instruments like watches. Their versatility makes them crucial in both industrial and everyday items.
Types and Variations
There are various types, such as miniature, deep groove, and precision bearings, each designed for specific needs like high speed, corrosion resistance, or ultra-precision.
Definition and Functionality
Ball bearings are a type of rolling-element bearing that utilize small, highly spherical balls—often made from hardened steel, stainless steel, or ceramic—to maintain separation between the inner and outer races. These races are grooved tracks that house the balls, allowing them to roll and facilitate smooth rotation. The primary function is to reduce rotational friction, which is significantly lower than sliding friction, and to support both radial loads (perpendicular to the axis of rotation) and axial loads (along the axis). This design enhances efficiency, reduces wear, and extends the lifespan of machinery and equipment.
Ball bearings achieve this by using at least two races to contain the balls and transmit loads, with one race typically stationary and the other attached to a rotating assembly, such as a hub or shaft. The rolling motion of the balls, as opposed to sliding, results in a much lower coefficient of friction, making ball bearings ideal for high-speed applications. However, they generally have a lower load capacity compared to other rolling-element bearings due to the smaller contact area between the balls and races, though they can tolerate some misalignment.
Types of Ball Bearings
Ball bearings come in a variety of types, each tailored to specific performance requirements and environmental conditions:
· Miniature Ball Bearings: These are small bearings, available in both inch and metric sizes, designed for precision applications. They meet requirements for radial retainer, pivot, thrust, high-speed radial, angular contact, and full ball complement, making them suitable for electronics, medical devices, and other compact systems.
· Deep Groove Ball Bearings: Known for their versatility, these bearings can handle both radial and axial loads and are widely used due to their low friction and high rotational speeds. They feature super-finished raceways and controlled internal geometries, ensuring consistent quality. Common applications include motors, pumps, and automotive components.
· Angular Contact Ball Bearings: Engineered to manage combined radial and axial loads, these are ideal for high-speed and high-precision applications, such as machine tools and automotive transmissions. Their design allows for better load distribution under angled forces.
· Precision Ball Bearings: Designed for ultra-high precision, these bearings feature tight tolerances and super-fine surface finishes, leading to higher yields and lower costs. They are essential in industries like aerospace, robotics, and scientific instruments where accuracy is paramount.
· Corrosion-Resistant Ball Bearings: Constructed with stainless steel rings, rolling elements, and cages, these bearings are built for harsh environments, improving uptime in conditions involving moisture, chemicals, or saltwater. They are commonly used in marine, food processing, and chemical industries.
Some supplier further categorizes them into miniature, deep groove, and super precision, noting that miniature bearings have bore sizes between 1 and 10 mm or up to half an inch, meeting ABEC7 precision class, while deep groove bearings are capable of high rotational speeds and are available in both metric and inch sizes, including stainless steel options.
Applications Across Industries
Ball bearings are integral to a vast array of applications, spanning industrial, automotive, aerospace, consumer, and precision sectors:
· Industrial Machinery: Essential in electric motors, gearboxes, conveyor systems, and centrifugal pumps, where they ensure smooth operation and reduce energy loss.
· Automotive Industry: Found in wheels, transmissions, engines, and other rotating components, enhancing vehicle performance and durability.
· Aerospace: Used in aircraft pulleys, gearboxes, and jet engine shafts, often with specialized materials like M50 tool steel (AMS6491), carbon chrome steel (AMS6444), AMS5930, 440C stainless steel, silicon nitride, and titanium carbide-coated 440C, as noted in the browse_page results for aerospace applications.
· Consumer Products: Common in skateboards (e.g., bearing 608-2Z, deep groove, 8 mm bore), yo-yos, fidget spinners, and bicycle hubs, where they provide smooth, low-friction movement for recreational use.
· Precision Instruments: Utilized in horology, such as the Jean Lassale Calibre 1200 watch (1.2 mm thick, using 0.20 mm balls), and computer fans, where precision and reliability are critical.
· Transportation: Employed in railroad locomotive axle journals, ensuring stability and efficiency in heavy-duty applications.
Key Features and Benefits
Ball bearings offer several advantages that make them indispensable in modern engineering:
· Reduced Friction: The rolling motion of the balls minimizes energy loss, improving efficiency and reducing heat generation, they increase machine efficiency while reducing noise and heat.
· Load Support: Capable of handling both radial and axial loads, depending on the type, making them versatile for various mechanical systems.
· Durability: High-quality materials and precision manufacturing, such as those adhering to ABMA grades (ranging from G2000 to G3, with lower numbers indicating higher precision, as per the Wikipedia page on bearing balls), ensure longevity and reliability.
· Versatility: Available in various sizes (metric and inch), materials (steel, stainless steel, ceramic), and designs, catering to diverse environments, from outdoor areas with pH levels between 3 and 12 to antiseptic or saltwater conditions, as mentioned by MISUMI for their stainless steel options.
Manufacturing and Precision
Bearing balls, the core components of ball bearings, are manufactured to specific grades defined by bodies like the American Bearing Manufacturers Association (ABMA). These grades, written as "GXXXX" (e.g., G100), range from 2000 to 3, with lower numbers indicating higher precision and fewer defects like flats, pits, soft spots, and cuts. In 2008, the United States produced 5.778 billion bearing balls, underscoring their global production scale. Ball Bearing defining grades based on dimensional accuracy and surface roughness, with measurements like deviation from spherical form, lot diameter variation, and nominal ball diameter tolerance ensuring quality.
Conclusion
Ball bearings are a cornerstone of mechanical engineering, enabling efficient, reliable, and durable operation across a spectrum of applications. Their diverse types, from miniature to corrosion-resistant, and wide-ranging uses, from aerospace to consumer products, highlight their versatility and importance.
