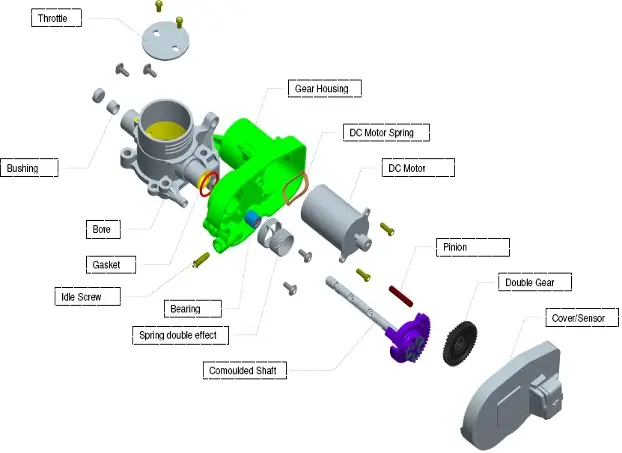

What is a Throttle Body?
A throttle body is a valve assembly installed at the inlet of the intake manifold, designed to regulate airflow into the engine cylinders precisely.
Imagine you have a straw, and you're blowing air through it to make bubbles in a glass of juice. The harder you blow, the more bubbles you get. Now, imagine there's a little flap inside the straw that you can open and close to control how much air goes through. When the flap is wide open, lots of air gets through, and when it's mostly closed, only a little air gets through.
In a car, the throttle body is like that flap in the straw. It controls how much air goes into the car's engine, which is like the car's "heart." The more air the engine gets, the faster the car can go, just like blowing harder makes more bubbles in your juice.
The gas pedal in the car is like your foot controlling the throttle. When you press it, the throttle body opens up, letting in more air and making the car go faster. If you take your foot off the pedal, the flap closes, and the car slows down.
What are the Functions of the throttle body?
1. Airflow Control: Its core function. Depressing the accelerator pedal adjusts the throttle plate angle, determining how much air enters the engine.
2. Engine Power & RPM Regulation: Engine output correlates directly with air (and corresponding fuel) entering the cylinders. Wider throttle opening increases airflow, prompting the ECU to inject more fuel, raising RPM/torque for acceleration; vice versa.
3. Idle Control: When the pedal is released (idle state), the throttle maintains a minimal opening (via idle control valve or electronic throttle logic) to sustain stable low-RPM operation.
4. Fuel Injection Coordination: In modern EFI engines, the ECU uses throttle position sensor (TPS) signals, air mass/MAF/MAP sensor data, etc., to calculate optimal fuel injection for the ideal air-fuel ratio.

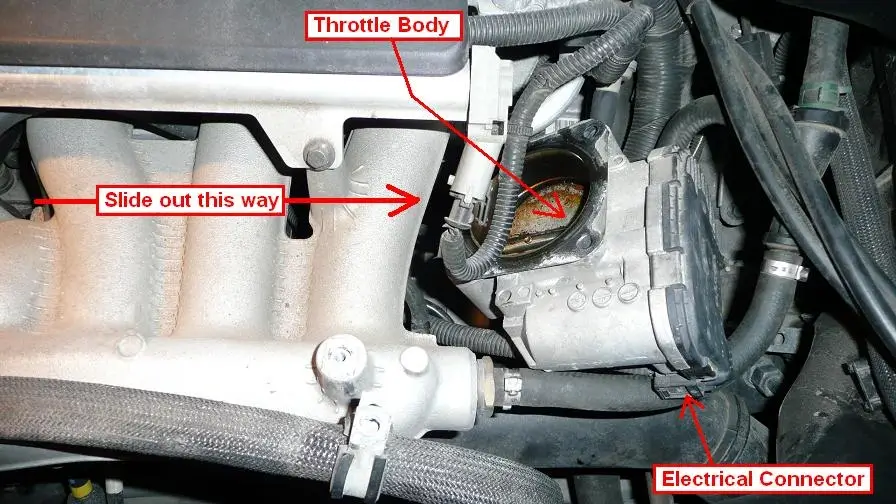

Where is it located?
The throttle body is located in the engine bay, typically attached to the intake manifold. It is part of the air intake system and sits between the air filter and the engine. Its exact position can vary depending on the car model, but it's generally at the top or front of the engine.
Common Issues & Failure Symptoms
- Carbon Buildup (Most Common):
Cause: Oil vapor (from PCV system) mixes with dust, baking onto throttle plate edges/body.
Symptoms: Rough idle, stalling, hard starts, sluggish acceleration, increased fuel consumption, MIL light (ETB).
Mechanical Binding (Mechanical/Older ETB): Sticky throttle plate due to carbon/wear.
Symptoms: Erratic throttle response, high/low idle.
Sensor Failure (ETB): Faulty TPS.
Symptoms: MIL light, rough idle, surging/hesitation, limp mode.
Motor Failure (ETB): Damaged actuator motor.
Symptoms: MIL light, no throttle response, limp mode.
Wiring/Connector Issues (ETB): Shorts/opens/corrosion.
Symptoms: Intermittent/persistent throttle/idle faults, limp mode.
Air Leaks: Damaged seals/gaskets/cracks.
Symptoms: High/unstable idle, lean codes, hissing noise.

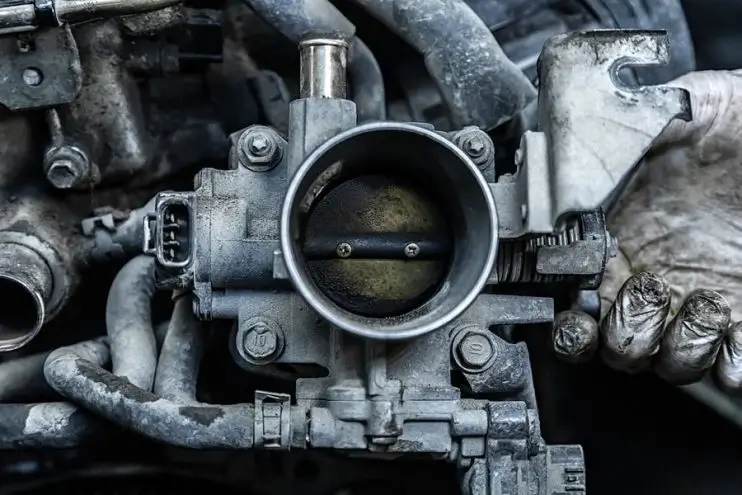

Why does the throttle body get dirty?
Factors such as fuel quality, air quality, air filter replacement intervals, and driving habits can all cause carbon deposits to build up on the throttle valve. The main reasons for a dirty throttle valve generally include:
1. A dusty environment with poor air filter filtration.
2. Substandard engine oil with a high evaporation rate.
3. Oil vapor and impurities from the crankcase.
4. Dust is being drawn into the throttle valve after the engine shuts off.
FAQ
How Many Throttle Bodies are in a Vehicle?
Typically, a vehicle has one throttle valve in the air intake system, especially in most gasoline engines. Some high-performance or modern engines (like certain V-type engines or turbocharged engines) may have one throttle valve per cylinder bank (e.g., two throttle valves for a V6 or V8 engine) to improve airflow and throttle response.
How Much Does A Throttle Body Replacement Cost?
Average throttle body replacement cost:
Parts: $150 to $600
Labor: $70 to $200
Total: Around $220 to $800+ depending on vehicle and location
Factors affecting cost include vehicle type, throttle body type (electronic or mechanical), and labor rates.
Is the Throttle Body Easy to Clean?
Yes, if you're comfortable with basic car maintenance, cleaning the throttle valve is pretty easy. You typically need basic tools (screwdrivers, socket wrenches) and throttle body cleaner spray.
Spray cleaner on the throttle valve, wipe off deposits carefully, and avoid damaging sensors or electrical parts.
