Timing Chains: Function, Kits, Symptoms and Diagnostic

An engine’s timing chain is a metal roller chain that links the crankshaft to the camshaft(s), keeping the top and bottom halves of the engine synchronized. As the crankshaft turns, the chain drives the camshafts so that each cam lobe opens an intake or exhaust valve at precisely the right moment in the piston’s cycle. This synchronization prevents the pistons from striking open valves and ensures smooth combustion timing. In overhead-cam engines the timing chain typically runs inside the engine and is lubricated by oil, making it a durable but critical component.

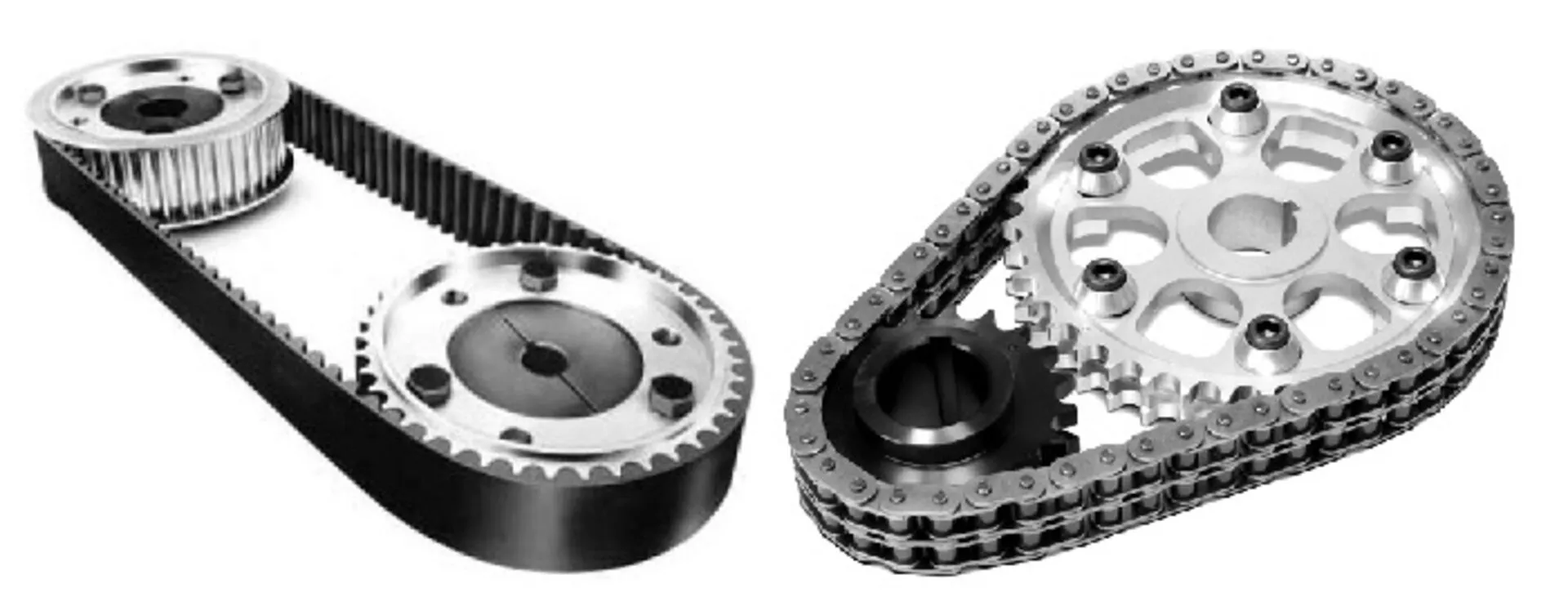

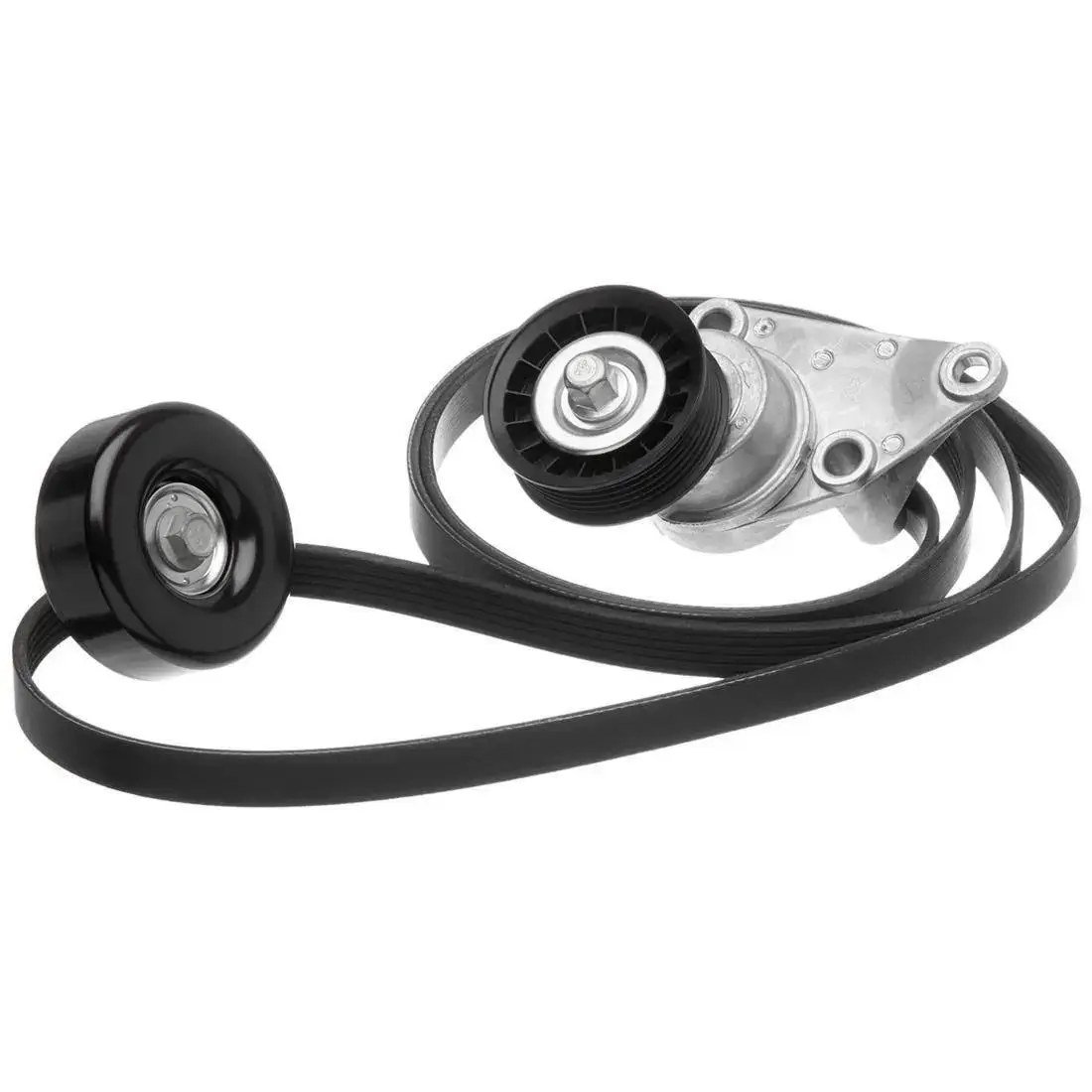

Timing Chain vs. Timing Belt

Modern engines use either timing chains or belts to coordinate camshaft and crankshaft movement. The main differences are in material and maintenance:

• Material and Durability: Timing chains are made of metal links, while belts are reinforced rubber. Chains are more durable – often lasting the life of the engine – whereas belts wear out and require replacement at manufacturer-specified intervals.
• Maintenance: Belts generally need replacement every 60,000–100,000 miles (depending on make/model). Chains have no fixed service life but should be inspected regularly (around 100,000–125,000 miles) for wear.
• Noise: Belts run quietly because rubber absorbs vibration. Chains are noisier (clatter or ticking at idle) when they begin to stretch or wear.
• Cost: Timing belts and related components (tensioners, pulleys) are relatively inexpensive to replace. Chains and chain kits cost more due to steel parts and complexity of repair.
• Failure Mode: A broken belt can instantly cause valve-piston collisions in an interference engine, leading to major damage. A chain usually stretches before failing, often giving warning signs (rattling, misfires).

In summary, chains outlast belts and give warning of wear, but they require proper lubrication and can be louder. Belts are quiet and cheap but must be replaced on schedule to avoid catastrophic failure.

Symptoms of a Worn or Failing Timing Chain

Watch for these signs that a timing chain may be failing:

• Rattling or Ticking Noise: A loose or stretched chain often causes a metallic rattle at idle, especially on startup or when engine is cold.
• Check Engine Light: Timing misalignment can trigger camshaft/crankshaft correlation error codes (e.g. P0016). The engine light may come on even if drivability seems normal.
• Engine Misfires or Rough Running: If the chain skips a tooth or jumps timing, cylinder firing will be off. Misfires sound like popping or backfiring and indicate the cam timing is incorrect.
• Loss of Power or Performance: Poor timing from a stretched chain reduces engine power. You may notice sluggish acceleration or stalling under load.
• Metal Shavings in Oil: As a chain wears, tiny metal fragments can appear in the oil pan or filter during an oil change. Finding metal debris is a serious warning sign.
• Engine Won’t Start or Suddenly Stops: If the chain breaks while running, the engine will immediately stop and may not restart until repaired. In an interference engine, a broken chain usually bends valves when pistons hit them.

Any of these symptoms warrants prompt inspection. Early detection can prevent costly engine damage.

Inspection and Diagnostic Methods

• Listen for Noise: With the hood open, use a mechanics’ stethoscope or even just pay attention to unusual rattles or clatters from the timing cover area at idle.
• Check Engine Codes: Use an OBD-II scanner to look for cam/crank correlation codes or misfire codes. Newer engines with variable valve timing often set a code when chain stretch causes timing errors.

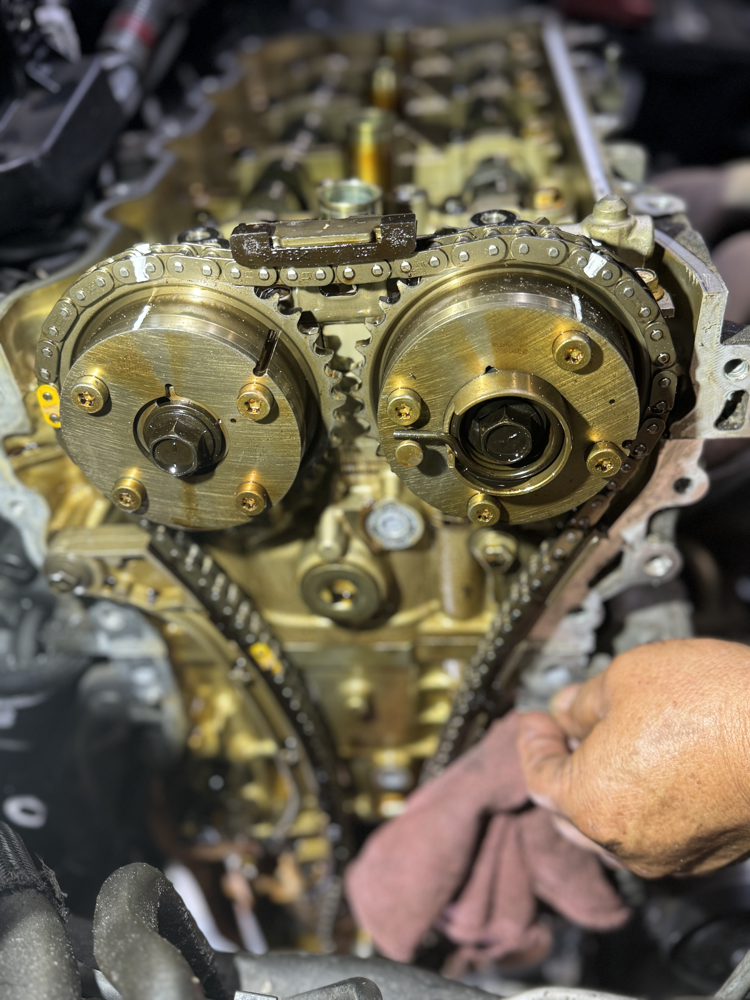

• Visual Inspection: Remove the timing cover (often requiring removal of accessories, pulleys, and tensioners) to directly inspect the chain and related parts. With the cover off, check for slack in the chain, wear on the chain links, or damage to guides and sprocket teeth.
• Tensioner Check: Inspect the chain tensioner (spring or hydraulic type). The tensioner should press firmly to keep the chain tight. A slack or collapsed tensioner suggests a stretched chain.
• Oil Check: Inspect the oil and filter for metal flakes. You can also pass a magnet through draining oil to pick up ferrous debris.
• Engine Turnover Test (Older Engines): On some engines with distributors, turning the crank from top dead center (TDC) and observing ignition timing drift can reveal chain stretch. This is a specialized test more common on older vehicles.

Regular maintenance inspections and paying attention to any new noises or codes are key. If in doubt, have a professional measure chain slack or check alignment with diagnostic tools.

Timing Chain Tensioners, Guides, and Sprockets

• Tensioners: These apply spring or hydraulic pressure to keep the chain tight. A failed tensioner (weak spring or clogged hydraulics) will let the chain go slack, causing noise and skipped timing. It’s crucial to install a new tensioner with a new chain.
• Guides: Plastic or metal rails guide the chain along its path. Worn or broken guides allow the chain to slap or skip. Always install new guide(s) when replacing the chain.
• Sprockets: The toothed gears on the camshaft(s) and crankshaft. They must be free of wear. Many timing chain kits include new cam/crank sprockets because a worn sprocket can prevent a new chain from seating properly.
• Full Chain Kits: Best practice is to use a complete timing chain kit (chain + tensioner + guides + sprockets + seals). This ensures all critical parts are renewed together, maintaining proper valvetrain timing.

Replacing all these components together is more expensive upfront but can save labor cost compared to doing them piecemeal later.

Oil and Maintenance for Chain Longevity

Proper lubrication is essential for a timing chain’s life. Key points:

• Regular Oil Changes: Fresh engine oil carries away debris and provides consistent lubrication. Old oil becomes thicker and loses its lubricating properties. Neglecting oil changes can leave the chain and gears running “dry,” accelerating wear.
• Correct Oil Grade: Use the oil viscosity (e.g. 5W-30, 0W-20) recommended by the vehicle maker. An oil that is too thin may not maintain sufficient film on chain links, while oil that is too thick can starve the chain (especially at cold start-up).
• Quality and Filter: Always use a high-quality oil filter and the right oil for your engine. Dirty oil (with sludge or contaminants) scratches metal parts and increases chain wear.
• Driving Conditions: Heavy loads, frequent towing, or hard acceleration put extra stress on the engine and chain. Engines under severe use should have oil changed more frequently to protect the timing chain.

By keeping oil fresh and at the proper level, you maximize chain life. Most manufacturers do not list a specific “timing chain replacement” interval, but they do emphasize engine maintenance (like oil changes) as part of the chain’s longevity.

FAQs About Timing Chains

• Q: What exactly does a timing chain do?
  A: It links the crankshaft to the camshaft(s), synchronizing their rotation. This ensures that intake and exhaust valves open at the correct times in relation to piston position. Without a functioning timing chain, engine timing is lost and pistons can collide with valves.
• Q: How is a timing chain different from a timing belt?
  A: A timing chain is metal (usually steel), whereas a timing belt is rubber with fibers. Chains are generally stronger and last longer than belts. Belts are quieter and cheaper, but must be replaced on a regular schedule (chains usually do not have such a schedule).
• Q: How long should a timing chain last? When should it be replaced?
  A: Timing chains can last 100,000+ miles or even the life of the engine with good maintenance. Many manufacturers do not specify a fixed interval. However, if an engine approaches high mileage (often 80,000–120,000 miles) or shows wear symptoms (noise, misfires), the chain should be inspected and likely replaced.
• Q: What happens if a timing chain breaks? Can I drive the car?
  A: If a chain breaks while the engine is running, the engine will immediately stop. In an interference engine, this almost always bends valves or damages pistons. Even in a non-interference engine, you must replace the chain before restarting. Driving with a failing chain is unsafe; a broken chain can cause catastrophic engine damage.
• Q: What are common symptoms of a bad timing chain?
  A: Typical signs include a rhythmic rattling from the engine (especially at idle), illuminated check-engine light for cam/crank timing errors, engine misfires, power loss, and metal fragments in the oil. These symptoms suggest the chain is loose or mis-timed and should be checked immediately.
• Q: Do I need to replace the water pump or any other parts when I replace the chain?
  A: Often yes. Many engines locate the water pump behind the timing cover. Mechanics commonly replace the water pump, seals and related gaskets while the cover is off. This saves labor cost down the road since the work area is already open. Check the service manual: if the water pump is driven by the timing gear, plan to change it at the same time.
• Q: What is a timing chain tensioner and guide, and do they need service?
  A: The tensioner is a device (spring-loaded or hydraulic) that keeps the chain tight. The guide (or rail) is a plastic/metal track that the chain runs over. Both wear out: a weak tensioner allows chain slack, and a worn guide lets the chain slap. ​Always install new tensioners and guides with a new chain​, as recommended by manufacturers.
• Q: Can I check my own timing chain or do I need a professional?
  A: An experienced DIYer can inspect it by listening for noise, scanning codes, or even removing the cover to look at slack. However, replacement is complicated and often requires special tools and precise timing alignment. If you’re not confident, it’s best done by a professional to avoid timing errors.
• Q: Does engine oil quality really affect the timing chain?
  A: Yes. The timing chain relies on engine oil for lubrication. Using the correct oil grade and changing oil regularly keeps the chain healthy. Dirty or improper oil can starve the chain of lubrication, causing faster wear.
• Q: Are timing chain replacements expensive?
  A: Replacing a timing chain is a major job. Labor can be lengthy because it involves disassembling the front of the engine. At a shop, a timing chain replacement can run from $1,500 to $4,000 or more (chain kits alone are a few hundred dollars). Doing it yourself with a purchased kit might cost $500–$900 in parts, but only if you have the tools and expertise to do it correctly.
• Q: My engine has two camshafts – how does a single chain work?
  A: Some dual-cam (DOHC) engines use one main chain between crank and primary cam, plus additional chains or belts between cams. Others use a single chain that connects to a gear/shaft driving both cams. In all cases, the chain system is designed to keep all camshafts synchronized with the crankshaft.

Each engine is different, so always consult the specific service manual and follow manufacturer guidelines. Proper timing is vital for engine health, so addressing chain issues promptly is crucial to avoid major repairs.
