What Is a Control Arm?

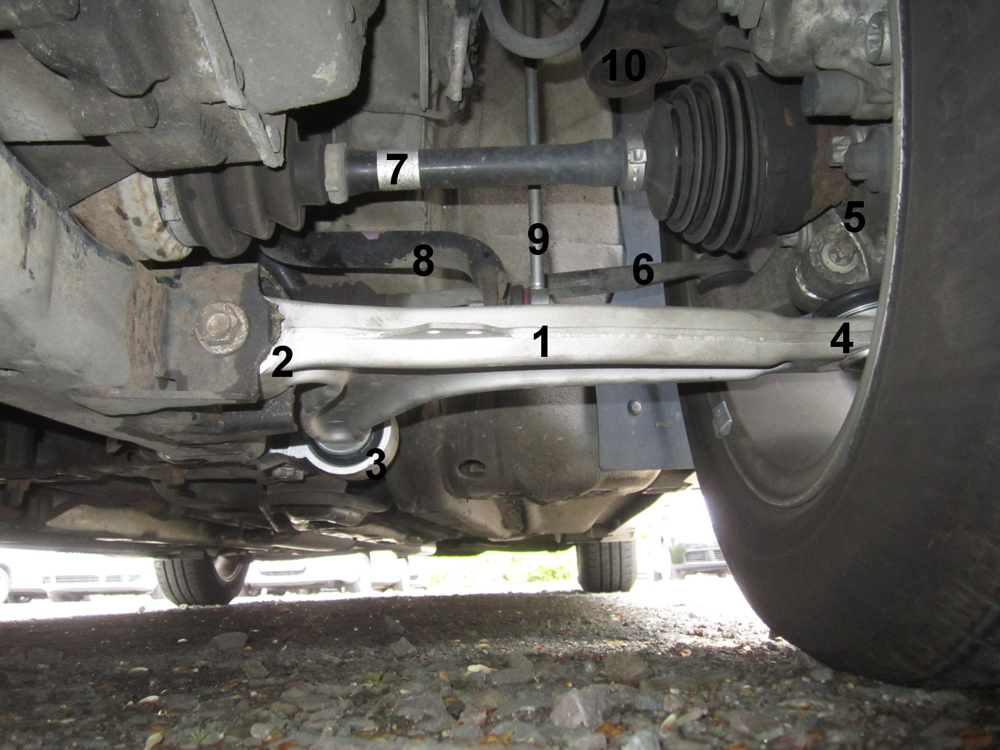

The control arm (highlighted as part 1 in the image) is a hinged suspension link that connects the vehicle’s chassis (frame) to the wheel hub or upright. In simple terms, it holds the wheel in position while allowing it to move up and down with road bumps. A control arm typically has rubber bushings at its inner (chassis) end (labels 2 and 3) and a ball joint at its outer end (label 4) that attaches to the steering knuckle. This design lets the wheel pivot vertically with suspension travel while the bushings and ball joint absorb noise and vibration. By keeping the tire in proper alignment relative to the car’s body, control arms ensure stability, responsive steering, and a smoother ride.
Types of Control Arms
Control arms come in different designs and configurations depending on the suspension type and vehicle. Key types and distinctions include:
- Upper vs. Lower Control Arms Many front suspensions use both upper and lower control arms per wheel, forming a "double wishbone" setup, which provides two anchor points for better wheel motion and alignment control. Modern cars with MacPherson strut suspensions usually only have a lower control arm, with the strut acting as the upper arm.
- Front vs. Rear Control Arms Most cars and light trucks have control arms in the front suspension. Rear suspensions may also use them if independently suspended, such as in multilink or double-wishbone setups. Solid rear axles use different linkages.
- A-Arm (Wishbone) vs. Single-Pivot Arm An A-arm, or wishbone, is A-shaped or triangular, with two widely spaced bushing mounts on the chassis and a single ball joint. This design is stable and controls both upward/downward and fore/aft movement. A single-pivot arm has one chassis bushing and one ball joint, requiring a separate radius rod for fore/aft stability. Most modern cars use wishbone-style or L-shaped arms to eliminate the need for a separate radius rod.
- Fixed vs. Adjustable Control Arms Some aftermarket or performance control arms are adjustable, allowing fine-tuning of alignment angles, while most factory control arms are non-adjustable. Adjustable arms are common for modified vehicles.
Integration with Other Suspension Components
Control arms are not standalone parts – they work in unison with several other suspension and steering components:
Control arms work alongside:
- Bushings (pivot points)
- Ball joints (connect to steering knuckle)
- Struts/shocks and springs
- Sway bar end-links (attach to control arms) These components collectively manage vertical wheel movement, body roll, and steering dynamics
Common Symptoms of a Worn or Damaged Control Arm
A failing control arm (or its bushings/ball joint) will often produce noticeable symptoms in your vehicle’s handling and ride. Watch for these common signs of a bad control arm assembly:
- Clunking or Knocking Noises: A tell-tale sign is a clunk or thud noise from the suspension, especially when going over bumps, potholes, or when braking/accelerating. This often indicates excessive play in a control arm bushing or ball joint. Essentially, the loose component allows the arm to bang against the frame or subframe, causing noise.
- Steering Wandering or Pulling: If the vehicle drifts or pulls to one side, or the steering feels vague and requires constant correction, a worn control arm could be to blame. Worn bushings can introduce alignment changes (like shifting wheel position), leading to unstable steering. You might notice the car doesn’t track straight and needs extra steering input to stay in lane.
- Uneven or Premature Tire Wear: A bad control arm (particularly bad bushings or a bent arm) can throw off alignment settings like camber or toe. This often causes uneven tire wear, such as excessive wear on the inner or outer edges of the tread. If you see abnormal tire wear patterns, don’t just replace the tires – inspect the suspension, including control arms, for looseness or damage.
- Excessive Vibration in Steering: Worn control arm bushings can allow the wheel to shimmy or vibrate, which you may feel through the steering wheel. If a control arm or its bushings are failing, you might experience a steering wheel vibration that changes with speed or during braking. (Note that vibrations can also come from unbalanced wheels or other bad components, but control arms are one possible cause.)
- Clunk on Acceleration/Braking: Another noise-related symptom is a clunk or shift feeling when you hit the gas or brakes. If a control arm bushing is severely worn, the whole arm can shift under torque, causing a clunk as the wheel moves fore/aft. You might especially notice a thump when accelerating from a stop or when braking hard, as the weight shifts on the suspension.
- Poor Handling and Ride Quality: Because control arms keep the wheel aligned and absorb bumps, a failing control arm can lead to a generally rougher ride and degraded handling. The car may feel unstable over bumps and not as composed in turns. If the bushings have disintegrated, the suspension can’t isolate road shocks well, making the vehicle feel harsher and less predictable.
(Any of these symptoms should prompt an inspection of the control arms and related components. Driving with a badly worn control arm can be dangerous, as the component could eventually fail and cause a loss of control.)
Diagnostic and Inspection Procedures
If you suspect a control arm issue, you can perform several checks to diagnose it. Here’s how to inspect control arms and their joints/bushings:
- Initial Observation: Park the vehicle on level ground. Look at the wheel positions in the wheel wells – one wheel sitting noticeably too far forward or backward in the wheel arch can indicate a shifted control arm or worn bushing. Also check if the car’s ride height looks even on both sides. Sometimes a bent arm or seized bushing can alter ride height or wheel alignment.
- Test Drive for Symptoms: Drive at low speed over small bumps or around a parking lot. Listen for clunking noises from the front end. Note any pulling to one side or steering looseness. These clues help pinpoint the issue (as described in the symptoms above). If you hear clunks, try braking or accelerating slightly to see if it affects the sound.
- Safely Lift the Vehicle: Park on a hard, flat surface, chock the wheels, and jack up the front (or rear, if inspecting rear control arms). Support the vehicle on jack stands under the frame. Never work on a car supported only by a jack. Remove the wheel for better access to suspension components.
- Visual Inspection: With the wheel off, visually inspect the control arm and connected parts. Look for cracked or split bushings where the arm bolts to the frame – you might see torn rubber or even the center metal sleeve visibly off-center. Check the ball joint dust boot for tears or leakage of grease; a torn boot usually means dirt has gotten in and the joint may be worn. Also look for any bends, cracks, or damage in the control arm itself (though arms are stout, a hard curb strike can bend them).
- Check for Bushing Play: Use a pry bar to test the control arm bushings. Place the pry bar between the control arm and the frame/bracket and gently pry to see if the bushing moves excessively. There should be very little movement – the arm should feel snug in the bushing. If the arm clunks or shifts noticeably in the bushing, then the bushing is likely shot. Also try to push/pull the control arm by hand (if possible) to feel for looseness.
- Ball Joint Play Test: To check the ball joint, you can do a wheel wiggle test. Reinstall the wheel (with lug nuts snug) or have a helper hold the brake, then grasp the tire at the 12 and 6 o’clock positions and rock it in and out. Any clicking or looseness felt could indicate a worn ball joint or wheel bearing. You can often differentiate by watching the ball joint: if it’s bad, you’ll see movement between the knuckle and control arm. You can also use a long bar under the tire and lift upward to see if the ball joint has vertical play. (Always be safe under a lifted car – keep clear of pinch points.)
- Check Sway Bar Links and Other Components: While underneath, inspect the sway bar end link that connects to the control arm (if applicable). A worn or broken sway bar link can also cause clunks, and it’s easy to confuse with control arm noise. Make sure the link’s joints are tight and boots intact. Similarly, check the tie rod ends by moving the wheel at 3 and 9 o’clock – looseness here would indicate tie rod wear rather than the control arm. It’s important to isolate each component when diagnosing front-end issues.
- Professional Alignment Check: If you’re still unsure, have a professional check the suspension and alignment. Often an alignment technician can tell if a control arm or bushing is bad because the wheel alignment will not hold steady (for example, a bad bushing might cause alignment readings to wander when the wheel is jostled). Unusual alignment readings (like significantly different caster/camber on one side) can hint at a bent or damaged control arm as well.
By performing these steps, you can confirm if a control arm or its bushings/ball joints are indeed the source of the problem before proceeding to replacement.
Control Arm Replacement Procedure (Step-by-Step)
Replacing a control arm can be a moderate DIY job. The difficulty depends on the vehicle design – MacPherson strut suspensions are usually straightforward, while some multilink or torsion bar setups can be more involved. Always consult a repair manual for your specific vehicle. Below is a general step-by-step guide for replacing a front lower control arm on a typical car:
Preparation & Safety: Ensure the car is on a flat surface. Gather the needed tools: a jack and jack stands, wheel chocks, lug wrench, socket and wrench set (including breaker bar), pliers (for cotter pins), a ball joint separator or pickle fork (optional but helpful), hammer, pry bar, and a torque wrench for reassembly. Wear safety glasses and gloves when working. If the vehicle uses a coil spring on the control arm (common in older double-wishbone suspensions), you must compress or support the spring before removing the arm to avoid a dangerous spring release. (In strut suspensions, the spring is contained on the strut, so this is less of a concern.)
- Loosen Lug Nuts: While the car is on the ground, loosen the lug nuts of the wheel on the side you’ll be working on (break them free but do not remove them fully).
- Jack Up the Vehicle: Chock the opposite wheels, then jack up the car at the recommended lift point. Place a jack stand under the frame or pinch weld and securely support the car. Repeat for the other side if needed (for front end work, it’s often best to lift the entire front). Lower the jack so the car rests safely on the stands. Remove the wheel lug nuts and take off the wheel.
- Disconnect Sway Bar Link (if attached): Locate the anti-roll bar link attached to the control arm. Unbolt the sway bar end link from the control arm. This is usually a small bolt and nut or a stud with an Allen key counter-hold. Remove it and set the link aside from the arm.
- Remove Any Other Attachments: Some control arms may have brackets holding a brake hose or ABS sensor wire – unbolt these to free the arm. Also, if there is a strut rod or additional link attached to the arm (in single-pivot designs), disconnect it as per the service manual.
- Remove the Ball Joint Cotter Pin and Nut: Locate the ball joint where it connects to the steering knuckle (often at the bottom of the knuckle for a lower control arm). Remove the cotter pin from the ball joint’s castle nut (use pliers to straighten and pull it out). Then use the appropriate socket to loosen and remove the castle nut from the ball joint stud.
- Separate the Ball Joint from the Knuckle: This can be the toughest part. The ball joint stud is tapered and sits tightly in the knuckle. You have a few options to pop it free: Use a ball joint separator tool (pickle fork or specialty press tool) to force the joint apart. Hammer method: Strike the knuckle near the ball joint boss with a heavy hammer. A few sharp blows to the side of the knuckle where the stud passes through can shock it loose (be careful not to hit the stud or threads directly). If using a pickle fork, note that it can tear the rubber boot (acceptable if you’re replacing the arm/ball joint anyway). When the ball joint breaks free, the control arm will drop down (or the knuckle will drop if supported by the strut). Support the knuckle/hub so that it doesn’t strain the brake hose – you can tie it up or use a jack under the assembly if needed.
- Unbolt the Control Arm from the Frame: The control arm is usually secured to the frame or subframe by two bolts (for two bushings) or a through-bolt and nut. Remove the mounting bolts that hold the inner bushings to the frame. These might be very tight (use a breaker bar) and possibly rusted – apply penetrating oil if needed. Remember which bolt goes where, as some bolts may be different lengths or have alignment cams. Note: In some cars, you may need to drop a portion of the subframe or remove other components to access these bolts – consult your manual.
- Remove the Control Arm: With all bolts and attachments removed, you should be able to maneuver the control arm out of its brackets and down from the vehicle. It may require some wiggling or prying if the bushings are snug. Be cautious of any cables or hoses. Take care not to damage the CV axle boot or other nearby parts when pulling the arm out.
- Prepare the New Control Arm: Confirm the new control arm matches the old one in shape and dimensions. Many replacement arms come with new bushings and ball joint pre-installed. If not, you’d need to transfer or install those (which may require a press for bushings or special tools for ball joints).
- Install the New Control Arm: Fit the new arm into place. Align the inner bushing mounts with the frame and insert the bolts. Do not fully tighten the frame bolts yet – leave them slightly loose for now. This allows the bushings to rotate freely when you later settle the suspension (tightening too early can preload the bushings).
- Attach the Ball Joint: Slide the ball joint stud back into the knuckle’s hole. Thread on the castle nut and tighten it to the manufacturer’s torque specification (use a torque wrench). Continue tightening until the nut’s slot aligns with the hole in the stud, then insert a new cotter pin through the hole and bend it to lock the nut. This prevents the nut from loosening.
- Reattach Sway Bar Link and Others: Reconnect the sway bar end link to the control arm and tighten it securely (torque to spec if available). Reattach any brake hose brackets or sensor wires to the new arm. Double-check that all components you removed (linkages, clips, etc.) are back in place.
- Tighten Control Arm Bushing Bolts (at Ride Height): This step is critical for the longevity of your new bushings. With the car still on stands, use a jack to raise the suspension (lift under the control arm) until the car just begins to come off the jack stand or until the control arm is roughly at normal ride position. Now tighten the inner control arm bolts to the specified torque. By torquing at ride height, you ensure the rubber bushings are in a neutral position when the car is on the ground, avoiding twist preload. If you tighten them with the suspension hanging, the bushings will be twisted at normal ride height, causing premature failure.
- Reinstall Wheel and Lower the Car: Put the wheel back on and hand-tighten the lug nuts. Jack the car up slightly to remove the jack stand(s), then lower the vehicle to the ground. Torque the lug nuts in a star pattern to the manufacturer’s spec.
- Alignment and Final Checks: Now that the new control arm is in, it’s highly recommended to get a wheel alignment as soon as possible (see below). Before driving off, bounce the suspension a few times and listen for any odd noises – there should be none if everything is tight. Take a slow test drive, confirming that clunking noises are gone and the car feels stable. Expect that your steering wheel alignment might be off or the car may pull slightly until the alignment is done.
(Always refer to a repair manual for any model-specific procedures or bolt torque values. Suspension bolts are safety-critical – ensure everything is tightened properly.)
Importance of Alignment After Control Arm Replacement
Replacing a control arm will almost always change the wheel alignment. The control arm sets the position of the wheel hub, so any bushing wear or differences in the new arm can alter alignment angles (camber, caster, toe). Even if you scribe marks and reinstall the new arm exactly, the vehicle should be professionally aligned afterward to ensure proper handling and prevent tire wear. Driving without aligning could result in the car pulling to one side or the new tires wearing out unevenly.
An alignment will adjust the suspension angles back to factory specification now that you have tight new components. It’s especially important if your car has alignment eccentrics or shims on the control arm mounts – those need readjustment whenever the arm is disturbed. In summary, don’t skip the alignment after control arm work. It’s the finishing touch to make sure your new parts perform optimally and your car drives straight and safely.
FAQs About Control Arms
- What does a control arm do?
– It connects the suspension to the vehicle’s frame and holds the wheel in the correct position. The control arm acts as a hinge, allowing the wheel to move up and down with bumps while keeping it aligned to the chassis. This maintains stability, alignment, and ride comfort.
- What’s the difference between upper and lower control arms?
– In suspensions that use two control arms per wheel (double wishbone), the upper arm attaches near the top of the wheel hub and the lower arm near the bottom. They form a parallelogram-like linkage to guide the wheel’s motion. The lower arm often bears the spring and more load, while the upper arm refines alignment. Some cars (MacPherson strut designs) have only a lower control arm – no upper arm – because the strut takes the place of the upper linkage.
- What causes control arms to fail or go bad?
– Wear and tear over time can degrade the bushings and ball joints (rubber dries out, metal joints lose lubrication). Additionally, sudden impacts are a common cause – hitting a large pothole, curb, or road debris can bend a control arm or damage its ball joint. In climates that use road salt, corrosion can rust the control arm or seize the bushings, leading to failure. Basically, heavy strain or harsh conditions will accelerate control arm problems.
- How can I tell if my control arm is bad?
– Typical symptoms include loud clunking noises over bumps, a pulling or wandering sensation in the steering, uneven tire wear, or a shimmy/vibration in the steering wheel (see above for a detailed list). If you notice one or more of these, you should inspect the control arm, ball joint, and bushings. You might also visibly see a torn bushing or a ball joint with excessive play during an inspection.
- Is it safe to drive with a bad control arm?
– It’s not recommended. A worn control arm (especially if a ball joint is about to fail) can result in unpredictable handling or even loss of control. If the ball joint breaks, the wheel can collapse inward or outward, making the car undriveable and very dangerous. Even a bad bushing can cause the vehicle to wander on the highway. For safety, have it checked and repaired as soon as possible if you suspect a bad control arm.
- How long do control arms last?
– Control arms and their bushings are designed to last many tens of thousands of miles – often well over 100,000 miles – under normal driving conditions. There isn’t a set replacement interval. Factors like road conditions, driving style, and exposure to salt can affect lifespan. Generally, you don’t replace control arms on a schedule – you replace them when the bushings or ball joints wear out or if the arm is bent/damaged. It’s a good practice to have them inspected during routine maintenance (especially after ~60k+ miles or if you frequently drive on rough roads).
- Should control arms be replaced in pairs?
– It’s often wise to replace both left and right arms at the same time, even if only one side is bad. This ensures symmetrical performance. If one arm’s bushings have worn out, the other side may not be far behind. New suspension components on one side can sometimes highlight weaknesses on the other side. For critical components like control arms, doing them in pairs ensures even handling and tire wear. (At the very least, inspect the opposite side carefully if one fails.)
- Do I need an alignment after replacing a control arm?
- – Yes. Whenever a control arm or any major suspension part is replaced, a wheel alignment is necessary. The new arm or bushing will likely position the wheel differently than the old worn one. Aligning ensures your wheels are set to correct angles (camber, caster, toe), preventing uneven tire wear and restoring proper tracking. Driving without an alignment can lead to poor handling and ruined tires, so don’t skip it.
- Can I replace just the ball joint or bushings, or do I need to replace the whole control arm?
– This depends on the vehicle and the condition of the parts. In some cases, ball joints or bushings can be replaced separately if the control arm itself is fine. This usually involves pressing out the old component and pressing in a new one – a job that may require special tools or a hydraulic press. However, many modern cars use control arms that come as an assembly with non-removable ball joints or bushings. In those cases, it’s often more practical to replace the entire control arm assembly. Even when separate parts are available, the cost of bushings plus labor to press them can approach the cost of a new arm. If your control arm is old, replacing the whole arm (with new bushings and joint pre-installed) can be more efficient and ensures everything is fresh.
- Is it hard to replace a control arm myself?
– For someone with moderate mechanical skill and the right tools, a control arm replacement is doable in a home garage – particularly on vehicles with simple front suspensions. MacPherson strut front ends are relatively straightforward: typically a few bolts and the ball joint connection. However, rusted bolts and tight spaces can make the job challenging. Some cars (luxury or performance models, or those with complex multi-link setups) can be more difficult, requiring additional disassembly or special procedures. Always use caution (safety stands, spring compressors if needed) and consult a repair manual. If you’re not comfortable with suspension work or lack the tools, it’s best to have a professional do the job. Safety is paramount since these components affect your ability to control the car.
