Exhaust Manifold: Types, Upgrades, Symptoms and System Integration

An exhaust manifold is the first component of a vehicle’s exhaust system, bolted to the engine’s cylinder head. Its job is to collect the hot exhaust gases from each cylinder and funnel them into a single outlet that leads to the rest of the exhaust (usually the catalytic converter and pipe). In other words, the manifold “collects the exhaust gases from the individual ports in the engine’s cylinder head, then routes those gases to the rest of the exhaust system”. Inline engines have one manifold; V-type or flat engines have one per bank. By directing exhaust away from the cylinders, the manifold helps maintain the correct back-pressure for efficient engine breathing. In modern cars the manifold often also houses the upstream oxygen (O₂) sensor(s) or even a close-coupled catalytic converter; this placement ensures that the sensor measures fresh engine exhaust before it enters the catalytic converter and provides feedback to the engine computer on air–fuel mixture. Overall, the exhaust manifold is essential for guiding exhaust out of the engine and toward emissions controls, while influencing engine performance through its effect on exhaust flow and pressure.

Types of Exhaust Manifolds

The two main designs of exhaust manifolds are the stock (cast-iron) manifold and the ​aftermarket tubular header​. Each has advantages and trade-offs:

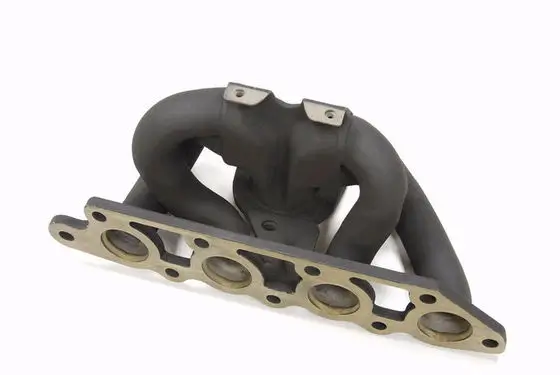

Figure: Typical cast-iron exhaust manifold for a 4‑cylinder engine. The four primary pipes (one per cylinder) merge into a single cast outlet.

• Cast-Iron (Factory) Manifolds: Stock manifolds are usually one-piece cast iron units. They have short, unequal-length primary pipes that bolt directly to the head and flow into a single chamber or outlet. Cast-iron manifolds are very durable and handle heat well, making them reliable for everyday use. They are heavy and inexpensive to make, which is why manufacturers use them as original equipment. The downside is that the thick cast material and tight bends tend to ​restrict flow​. In other words, stock manifolds usually create higher backpressure, which limits maximum power (especially at high RPM). Cast manifolds also retain more heat under the hood, which can raise intake temperatures (though they dampen exhaust sound). Over time, the heat cycling can cause ​cracks or warped flanges​, and the exhaust gaskets or nuts may fail. (A common cause of manifold problems is burned or worn gaskets between the head and manifold.)
• Tubular Headers (Aftermarket): Headers are aftermarket replacements made of bent steel tubing (usually thin-walled stainless steel or mild steel) with individual pipes for each cylinder. Each pipe is often equal in length and carefully tuned so that exhaust pulses merge smoothly into a larger collector. This design reduces exhaust backpressure compared to a cast manifold, allowing the engine to breathe more freely. Properly sized headers can significantly increase horsepower and torque, especially at higher RPMs, by improving scavenging and volumetric efficiency. Headers are lighter than cast manifolds and are sometimes ceramic-coated or wrapped to hold heat in the pipes (improving exhaust velocity).
  However, headers also have drawbacks. They cost more (exotic materials and labor make them pricier) and can be harder to install. Headers usually require extra space in the engine bay, and in tight-fit cars you may have to move the engine or other components to get them in place. They also run hotter (thin steel pipes let heat escape into the bay) and tend to make the exhaust louder with a sharper tone. In practice, headers are popular on performance vehicles and race cars (where every bit of power counts). Many performance headers are available in shorty or long-tube designs (see below). In summary:

Coatings and Variations

Performance manifolds and headers often include heat-management finishes. Common coatings include ceramic paint or thermal-spray ceramic, which insulate the pipes and reduce radiant heat. For example, a ceramic coating applied to a header can help it retain heat and also protect the metal from corrosion. Another option is exhaust wrap (fiberglass tape), which also keeps heat in the pipes. Wrap is inexpensive but can trap moisture and accelerate rust in the tubing. Some headers even come chrome-plated (mostly for looks), though chrome tends to discolor and offers little thermal benefit. Overall, the choice of material (stainless vs mild steel) and finish (paint, ceramic, wrap) will affect durability, heat control, and cost.

Performance Upgrades

Replacing a stock manifold with a performance header is one of the most common power upgrades. A well-designed header reduces exhaust restrictions and improves ​exhaust scavenging​, letting the engine expel spent gases more efficiently. This typically yields higher peak horsepower and a broader torque curve. In practical terms, a performance header can increase engine output by minimizing backpressure and increasing volumetric efficiency. Manufacturers and tuners often quote gains of 5–15% on top-end power after installing long-tube headers on a naturally aspirated engine. Besides power, headers also change the exhaust note – they generally make the exhaust louder and sharper because the individual pipes resonate more than a single cast manifold.

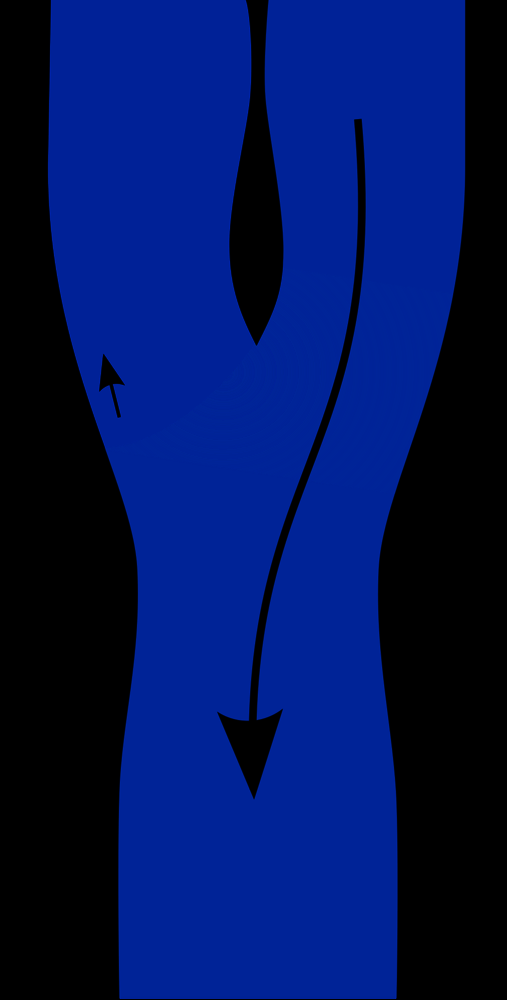

Figure: Cutaway diagram of a 2-into-1 header junction. Header designs (like this example) use tuned pipe lengths to manage exhaust pulses and pressure, helping to “scavenge” the cylinders and improve flow.
Headers come in shorty and long-tube designs. Short-tube headers (also called shorty pipes) have shorter primary tubes and connect into a collector relatively close to the engine block. They fit easily under the hood and bolt directly to stock exhaust components, giving a modest power increase (often improving midrange torque and throttle response) with minimal installation fuss. Long-tube headers have much longer primaries that merge farther down; they maximize scavenging and tend to produce the largest power gains, especially at high RPM. However, long tubes require more clearance and often need extra work (like dropping the subframe or lifting the engine) to fit. The performance difference is that long-tube headers can unlock greater top-end horsepower, while shorties are simpler to install but yield smaller gains.

Other factors to consider when choosing performance headers include:

• Material: Stainless steel headers are rust-proof and look shiny, but cost more. Mild steel (often painted or coated) is cheaper but can rust if the finish wears off.
• Primary Tube Diameter: Thicker tubes favor high-RPM flow, while slightly smaller diameters can improve low-end torque. Good header designs use the correct diameter for the engine size and RPM range.
• Collector Style: Most headers merge into a larger collector. The collector diameter and merge angle affect how the exhaust pulses combine. Some headers use a 4-into-2-into-1 design for better mid-range, while 4-into-1 favors peak power.
• Coatings/Wrap: As mentioned above, coatings like ceramic can keep heat in the pipes for faster exhaust velocity and cooler engine bay temperatures, though these add expense. Many racers wrap their headers to insulate heat, but be aware this can make the pipes hard to clean or rebuild later.

In summary, a performance header is a tuned exhaust manifold designed to boost power. It improves engine efficiency by smoothing exhaust flow (as illustrated above), but you must balance cost, fitment, and heat with the performance gains.

Symptoms of Failure

A failing exhaust manifold or gasket causes characteristic symptoms. Key signs include:

• Noisy engine (tapping or hissing): A common first clue is a loud tapping, ticking or hissing sound from the engine bay, especially on cold start or acceleration. This noise is caused by exhaust gas escaping through cracks or gaps in the manifold or gasket. Often it’s a rapid tick that goes away as the metal heats up and expands. (A severe crack or leak can even sound like a mini backfire each time the exhaust pulses.)
• Exhaust odor or fumes: You may ​smell exhaust inside the cabin or near the hood​. This happens when hot exhaust gases (which usually flow out the tailpipe) escape into the engine bay through the leak. Because carbon monoxide (CO) is odorless and dangerous, smelling any exhaust odor inside the car is a serious warning sign. Headaches, dizziness or nausea while driving can indicate CO inhalation – if this occurs, stop driving immediately and get fresh air. (Visible black soot around the manifold or on adjacent engine parts is another clue that exhaust is leaking before it reaches the tailpipe.)
• Poor performance and reduced economy: A leaking manifold upsets the engine’s air–fuel balance. The ECU senses extra oxygen (because exhaust is leaking before the oxygen sensor) and may inject more fuel to compensate, leading to a rich mixture. As a result, fuel economy drops and power can suffer. You might notice that you can’t accelerate as well as before, or that the vehicle feels sluggish.
• Check Engine Light: Because an exhaust leak fools the oxygen sensor, it often triggers a trouble code. The ECU may report a lean or rich mixture (depending on the leak location), illuminating the “Check Engine” light. In many cases, an O₂-sensor-related fault code will appear when the manifold gasket leaks.
• Visible damage: On inspection, you might see warped manifold flanges, cracked metal, or missing/broken bolts. Soot or black stains around the manifold-to-head joint indicate leaks. In severe cases the manifold may have visible fractures. If bolts have broken or come loose (a common failure point), the manifold can partially detach, causing rattling.

If you observe one or more of these symptoms, the exhaust manifold or gasket should be inspected. Early repair is important: a small leak will worsen over time, and unchecked leaks can damage the catalytic converter or pose a safety hazard.

System Integration

The exhaust manifold is an integral part of the vehicle’s emission-control system. It feeds raw exhaust into the catalytic converter and serves as the mounting point for the upstream oxygen sensor. Typically, one or more O₂ sensors are threaded into the exhaust stream at the manifold or immediately downstream. For example, the front (upstream) sensor is often located in the manifold or the very next pipe, measuring the oxygen content in the fresh engine exhaust. The engine control unit (ECU) uses this data to fine-tune the air–fuel ratio. Downstream of the catalytic converter, a second O₂ sensor monitors how well the converter is working (comparing upstream and downstream readings).

The catalytic converter itself ​*“is an emissions control device that converts harmful exhaust gases into water, carbon dioxide, and nitrogen”*​. In practice, the manifold must route hot exhaust efficiently into the converter so that its precious metals can perform this chemical cleanup. A crack or leak in the manifold (especially before the catalytic converter) upsets the oxygen sensor readings and can cause the ECU to run the engine too rich or too lean. In turn, this reduces converter efficiency and raises emissions. In fact, a damaged manifold often triggers an O₂ sensor error code or causes the check-engine light.

In summary, the exhaust manifold sits between the engine and the catalytic converter. It must supply the converter with the correct exhaust flow while housing the upstream sensors for emission control. Any leak here compromises the emission system’s function (and can let toxic gases leak into the cabin), so a well-sealed, properly routed manifold is essential for clean running and passing emissions tests.

Frequently Asked Questions about Exhaust Manifolds

• Can I drive with a cracked or leaking exhaust manifold?
  Driving with a cracked manifold is ​not recommended​. A leak lets exhaust gases (including carbon monoxide) escape before the tailpipe, which can enter the passenger compartment and pose a health hazard. It will also make the engine very noisy (ticking/hissing sound) and usually causes loss of power. If you smell exhaust fumes inside the car, stop driving immediately and have it repaired.
• How much does it cost to replace an exhaust manifold?
  Costs vary widely by vehicle and labor rates. On average, a complete manifold (including parts and shop labor) is on the order of ​**$1,000–$1,500**​. RepairPal estimates a nationwide average of about $1,347–$1,563 for manifold replacement (labor typically a few hundred dollars plus roughly $800–$1,000 in parts). The price depends heavily on the car model: some high-end or V-type engines can cost much more if labor is high or access is difficult.
• What’s the difference between an exhaust manifold and a header?
  The short answer is: manifolds are the stock, usually cast-iron unit that comes on the engine, whereas headers are aftermarket tubular collectors designed for performance. As explained above, manifolds prioritize durability and low cost, while headers are built for flow and power. In practical terms, an aftermarket header is just an optimized manifold with individual pipes and larger diameter, often yielding more horsepower. Installing headers usually requires careful fitting, whereas stock manifolds are a simple bolt-on.
• What is an exhaust manifold gasket?
  An exhaust manifold gasket seals the joint between the head and the manifold, preventing leaks of exhaust gases. Whenever the manifold is removed, the old gasket must be replaced with a new one. A failed gasket can cause identical symptoms (noise, leak) as a cracked manifold. Gasket material is usually a metal or composite that can withstand high heat. Replacing the gasket often costs much less than replacing the entire manifold (typical gasket-replacement can run a few hundred dollars for parts and labor).
• Do performance headers require engine tuning?
  Aftermarket headers generally do not require a custom tune on modern fuel-injected cars, but the engine’s computer may adapt fuel trims to compensate for the improved flow. If the headers are a simple bolt-on and you are not changing other parts (like air intake or camshaft), the ECU should adjust automatically without a check-engine light. However, on highly tuned engines, or if a significantly larger header is installed, a professional tune may extract the maximum benefit and ensure emissions compliance.
• Should I coat or wrap my headers?
  Coating headers with a ceramic or high-temp paint can help them hold in heat (which can slightly improve flow) and reduce engine-bay temperatures. Wrapping headers with exhaust tape will do the same but tends to accelerate corrosion underneath and makes maintenance harder. Both are optional: ceramic coatings are popular on race cars, while street cars can run fine unwrapped as long as you manage engine bay heat.
