Engine Oil Pump: Function, Types, Diagnostics, and Replacement Guide

Role in Engine Lubrication: The engine oil pump circulates and pressurizes oil to all moving parts, reducing friction and cooling the engine. Proper lubrication “not only reduces friction between moving parts but is also the main method by which heat is removed. The oil pump forces the motor oil through the passages in the engine to properly distribute oil to different engine components”. In practice, the pump draws oil from the pan through a pickup strainer, sends it through the filter, and forces it into oil galleries to lubricate crankshaft bearings, pistons, valve gear, etc. Without a working oil pump to circulate oil, an engine will rapidly overheat and seize.

Types of Engine Oil Pumps

Engine oil pumps are ​positive-displacement pumps​; common designs include gear pumps, gerotor (rotor) pumps, vane pumps, and ​variable-displacement pumps​. Each creates suction by expanding a chamber and then forcing the oil out as the chamber shrinks.

• Gear Pumps (External or Twin-Gear Pumps): These use two meshing gears to move oil. One gear is driven (by the engine) and drives the other gear. Oil is trapped between gear teeth and carried from the inlet to the outlet as the gears mesh. Gear pumps are robust and common in older engines. A twin (external) gear pump is often mounted low in the crankcase on the engine’s oil pan floor, driven by a shaft from the camshaft or crankshaft. It typically runs at half crank speed, producing steady flow and pressure.
• Gerotor (Rotor) Pumps: These internal-gear pumps use an inner rotor (drive gear) and an outer rotor (idling ring) with one more tooth on the outer. The inner gear drives the outer gear around an offset center, so crescent-shaped chambers between them expand and contract to draw in and push out oil. The photo below shows a disassembled gerotor pump from a Toyota diesel engine, revealing the star-shaped inner rotor and its outer housing. Gerotor pumps are compact and efficient; as the rotors turn, each lobe’s volume increases (suction) and decreases (pressure), pulling oil through the pump.

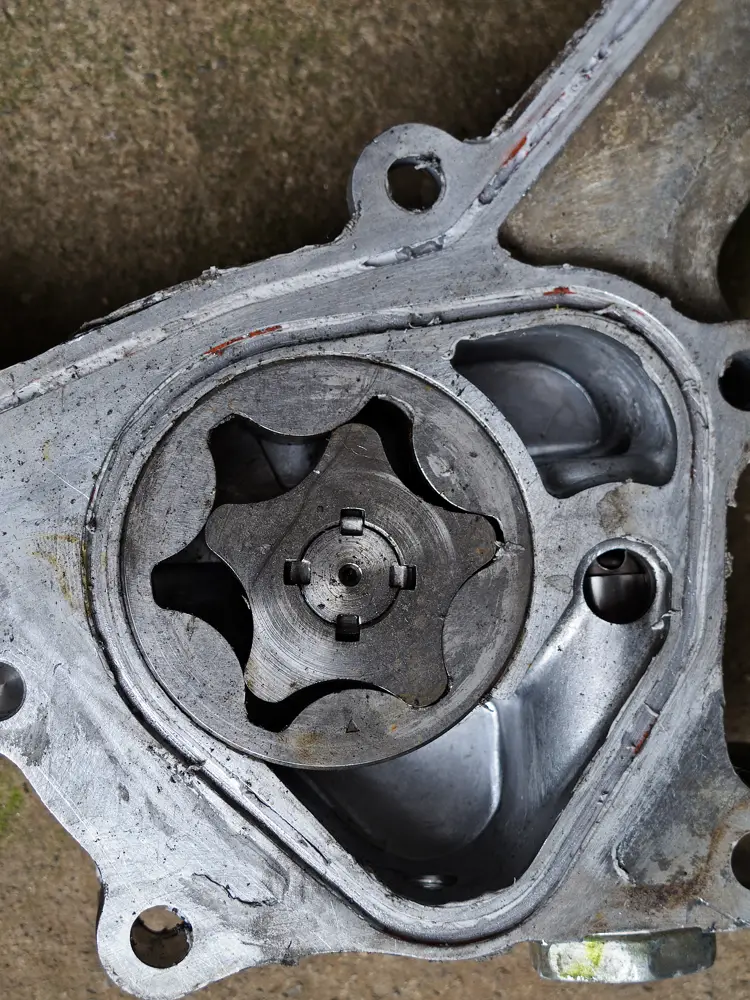

Disassembled gerotor (internal-gear) oil pump. The inner drive gear and offset outer rotor create expanding and contracting oil chambers. In operation, this design traps oil between lobes to create suction on the inlet side and pressure on the outlet side as the rotors rotate.

• Vane Pumps: A vane pump has a slotted rotor with radially sliding vanes that maintain contact with the pump housing. As the rotor turns eccentrically, vanes are forced outward by springs or centrifugal force, creating suction at the inlet and forcing oil out at the discharge. Vane pumps provide smooth flow and are sometimes used in modern applications. They are more complex than simple gear pumps but can handle a range of pressures. Vane pumps have been used in newer engines, often integrated into the engine front cover.
• Variable-Displacement Pumps: Modern engines often use a variable-displacement pump that adjusts its output based on demand. These pumps (often vane- or gerotor-type) use a control mechanism (such as a solenoid-actuated ring or movable swash plate) to change the effective pumping volume. For example, a gerotor pump can add a movable ring around the outer rotor to adjust eccentricity and thus change flow per revolution. The advantage is improved efficiency and fuel economy, since the pump only produces as much oil as needed at a given engine speed and load.

Internal (Crankcase-Mounted) vs. External Oil Pumps

Crankcase-Mounted (Wet-Sump) Pumps: Most engines use a wet-sump system with the pump mounted inside the crankcase or oil pan. Typically this is either a twin-gear or gerotor pump located at the bottom of the engine in the oil pan. Because it is submerged in oil, a crankcase-mounted pump self-primes (fills with oil) easily. It is often driven at half engine speed via the camshaft or a drive shaft.

Front/External-Mounted Pumps: Some engines (especially overhead-cam designs) use a pump mounted in the front timing cover or engine block, directly driven by the crankshaft. These external pumps turn at full crank speed, yielding higher idle oil pressure. However, since they sit above the oil level, they do not self-prime. Priming is critical: a new front-mounted pump must be filled with oil before initial startup, or a dry start will occur. In practice, a mechanic will often pump oil into the front pump or oil galleries during installation to avoid starving the engine at first cranking.

Key differences: Crankcase-mounted pumps are lower and submerged (self-priming, half-speed drive) whereas front-mounted pumps are driven directly by the crank (full-speed drive, require pre-filling). Front-mounted pumps tend to generate more pressure at idle and are used on many modern engines, but require careful priming during installation.

Symptoms of a Failing Oil Pump

• Low Oil Pressure: The most common sign is chronically low oil pressure. The dashboard oil pressure light may flicker or stay on, or an oil pressure gauge may show unusually low readings. For example, one guide notes “low oil pressure… indicated by the gauge or warning light” as a key symptom.
• Oil Pressure Warning Light: A lit-up or flashing oil pressure warning light often accompanies pump problems. If the light stays on even after adding oil, suspect the pump (after ruling out sensor faults).
• Engine Noise: Noisy valvetrain or engine ticking/knocking can occur when oil pressure is insufficient. A failing pump may cause hydraulic lifters to tick or even bare metal-to-metal contact. Mechanics report that a bad oil pump can make a whining or ticking sound, especially at idle, due to starving oil passages. Loud knocking from rod bearings or lifters under load can indicate catastrophic lubrication loss.
• Engine Overheating: Poor oil flow means less cooling of friction surfaces. The engine may run hotter than normal if the pump isn’t supplying enough oil to carry away heat. Overheating combined with low pressure is a red flag.
• Reduced Performance or Stalling: A failing oil pump can cause loss of power or even engine stalling, especially in engines with oil-dependent components (like turbos). One source notes that “a failing oil pump can cause the engine to lose power, stall, or not start at all… Often due to an oil-fed component… stops working when it doesn’t get enough oil”.
• Oil Leaks: Oil leaking from around the front engine cover (near the pump location) may indicate pump housing or gasket failure. Some sites list front-engine oil leaks as a symptom of pump issues.

Note: These symptoms can also result from other issues (worn bearings, clogged filter, low oil level, etc.). Always diagnose carefully (see below) rather than assuming the pump has failed.

Diagnosing Oil Pump Problems

Proper diagnosis requires ruling out other causes and verifying actual pump output:

• Check Oil Level First: Always ensure the oil level and condition are normal. If the level is low, add oil and retest pressure. (If pressure returns to normal after adding oil, the pump may be fine.)
• Oil Pressure Gauge Test: The definitive test is connecting a mechanical oil pressure gauge. Remove the oil pressure sensor or sender and install a test gauge to read true oil pressure. If gauge readings are significantly below spec (typically under ~10 psi per 1,000 RPM on a warm engine), the pump or pickup is at fault.
• Inspect Pickup Screen and Screen Tube: Remove the oil pan to visually inspect the pickup tube and screen. Sludge, debris, or loose parts in the pan can clog the pickup. An obstructed pickup will starve the pump. One guide advises: “The only way to inspect the pickup tube is to remove the oil pan… If the tube is clogged or full of sludge, replace it”.
• Inspect Pump and Gears: With the pan and pump removed, check the pump itself. Look for scoring or wear on gears/rotors and housing. Worn internals allow slippage (loss of pressure). As one manual states, excessive clearances between pump gears and housing will let fluid leak back internally and reduce output.
• Pressure Relief Valve Check: Inside the pump or filter housing is a spring-loaded relief/bypass valve. A stuck-open valve will dump oil back to the sump and kill pressure. Ensure this valve is not jammed. (Often a new pump is recommended if any doubt.)
• Verify Oil Filter and Passages: A clogged filter can mimic pump failure. Replace the oil filter and retest pressure to rule it out. Also check for collapsed oil cooler lines or blockages in oil galleries.

By combining an oil pressure test with inspection of the pickup and pump internals, you can confirm whether the pump itself is at fault.

Oil Pump Replacement Guide

Tools & Prep: Typical tools include a socket/ratchet set, wrenches, screwdrivers, torque wrench, drain pan, jack stands (for vehicle support), and work lights. Always work on a level surface with the engine cool. Safety: Disconnect the negative battery cable, chock the wheels, and wear safety glasses/gloves. Ensure the car is securely supported before working underneath it.

Steps: Replacing the pump usually goes as follows:

1. Drain Engine Oil: Remove the oil drain plug and drain the oil into a pan. Dispose of used oil properly.
2. Remove Oil Pan: Depending on engine design, you may need to unbolt crossmembers or other components first. Then unbolt and remove the oil pan to expose the pump (often in the front or side of the block). Be prepared for residual oil; have shop rags handy.
3. Remove Pump: Unbolt the oil pump housing. On crankshaft-driven pumps, you may need to remove a drive shaft or gear. Take note of the pump’s orientation (and any timing marks if on a chain-driven pump) so you can install the new pump correctly.
4. Clean Surfaces: Scrape off old gasket material from the block and pump mounting surfaces. Clean everything thoroughly.
5. Prime the New Pump:​Important: Before installing a new pump, pre-fill it with clean engine oil. For front-mounted pumps (dry), pour oil into the pump gears/chambers so it is pre-lubricated. Crankcase-mounted pumps (wet) will self-prime when cranked, but it’s still good practice to fill the pickup and pump housing.
6. Install New Pump: Fit a new gasket or O-ring/seal as required. Bolt the new oil pump to the engine, tightening to spec. (If the pump uses a drive shaft, ensure it engages properly.) If the pump has alignment dowels, seat it fully on them.
7. Reinstall Oil Pan: Fit a new oil pan gasket or use sealant as specified, then bolt the pan back on (torque to spec). Replace any components (crossmembers, braces) that were removed.
8. Refill Oil and Test: Install a new oil filter. Refill the engine with fresh oil of the correct grade. Do not start the engine immediately. Instead, first turn the engine by hand or use an oil pressure priming tool to circulate oil and check for leaks. Then start the engine and check oil pressure with a gauge or observe the dashboard light. Inspect for any oil leaks around the pan or pump.

Manufacturers’ manuals may have model-specific notes (e.g. aligning pump timing marks on some engines). The basic procedure of draining, removing the pan, swapping the pump, and priming it is common. Since oil pumps often live behind covers or accessories, the job can be labor-intensive – “a big job” requiring pan and sometimes timing cover removal.

Oil Quality and Pressure Monitoring

Maintaining clean, correct oil is vital for pump longevity. Engines run their pumps on unfiltered oil (the filter is downstream of the pump), so any sludge, dirt, or metal debris can damage pump gears. Experts note that the primary cause of premature pump failure is poor maintenance – clogged pickup screens or abrasive contamination from overdue oil changes. Use the manufacturer-recommended oil viscosity and change intervals. Good-quality oil and filters keep the pump and moving parts well lubricated and free of particulates.

It’s also wise to monitor oil pressure regularly. A dipstick check and a working oil pressure gauge or light will alert you to drops in pressure. If your pressure gauge or warning light indicates low pressure when oil level is good, inspect the pump (and filter) promptly. Early detection (via the gauge, unusual noises, or filter change inspection) can prevent damage. In summary: Regular oil changes and keeping oil at proper level/viscosity greatly extend pump life, and prompt response to any oil pressure changes prevents engine damage.

FAQs about Engine Oil Pump

• What are the common symptoms of a bad oil pump? Typical signs include a persistently low oil pressure reading or oil warning light, loud engine noises (whining, ticking or clanking, especially at idle), engine overheating, and loss of power. You might also see oil leaking near the pump. If you notice any of these – especially low pressure – have it checked immediately.
• Can I drive with a bad or failing oil pump? No. Driving with an oil pump that is losing pressure will starve the engine of lubrication, rapidly causing wear or catastrophic damage. Many mechanics warn that operating an engine with a faulty pump can lead to severe engine failure in a very short time. If the oil pressure light comes on and adding oil doesn’t fix it, stop driving and have the pump inspected.
• How do I test whether my oil pump is working? The most reliable test is to use a mechanical oil pressure gauge. Remove the oil pressure sensor and attach a gauge to read actual pressure while cranking/running the engine. Also check the oil pickup screen (by dropping the pan) for blockages. Some DIY tips: when rebuilding an engine, people often prime (manually turn over) the engine to see oil flow from the filter housing. But for a standing car, a proper gauge reading is best. If the gauge shows near-zero pressure despite normal oil level, the pump (or relief valve) is likely bad.
• How often should an oil pump be replaced? Oil pumps are designed to last the life of the engine, so routine replacement isn’t scheduled. Generally, replace the pump only if it fails or if you’re doing a major engine rebuild. In many vehicles an oil pump can exceed 100,000 km (60,000 mi) without issues. However, if after servicing (new oil, filter, sensor) pressure is still low, consider pump replacement.
• What causes an oil pump to fail? Common causes include insufficient oil changes (leading to sludge or debris in the pump), using the wrong oil viscosity, and excessive engine RPM/heat. Dirty oil and fine abrasive particles accelerate wear on the pump gears since it runs on unfiltered oil. Also, a worn or broken oil pick-up tube, a stuck relief valve, or physical damage (from engine overload) can knock out a pump.
• Why is priming a new oil pump important? Priming means pre-filling the pump and lines with oil before startup. It’s especially critical for dry (external) pumps mounted above the oil level. Failure to prime can lead to a “dry start” where the pump runs empty on first crank, causing severe bearing wear. Service manuals often direct adding oil directly into the pump housing or the engine’s oil gallery before firing the engine. (Crankcase-mounted pumps will draw oil from the pan and self-prime, but adding some oil for lubrication is still good practice.)
• How long do oil pumps typically last? With proper maintenance, an oil pump normally lasts as long as the engine. Many sources note that pumps often never need replacement unless the engine is taken apart or pump fails. Factors that can shorten life are mainly external (dirty oil, missed changes, extreme operating conditions). Under normal conditions, expect the pump to remain reliable well beyond 150,000 km.
• What happens if I ignore oil pump issues? Ignoring low oil pressure or a malfunctioning pump almost inevitably leads to engine damage. As oil starvation progresses, metal parts overheat and wear rapidly. The pump in effect is the engine’s “heart” – without its pressure the engine will seize. In worst cases the bearings or pistons will fail completely, requiring a full rebuild or replacement engine.
• How expensive or difficult is oil pump replacement? Labor is the main cost, since accessing the pump often requires removing the oil pan (and sometimes the front cover or engine mount). It’s generally considered a moderate-to-difficult repair. Parts (pump unit, gasket) are usually affordable, but expect several hours of labor. Specialty engines with pumps behind timing covers (or those requiring engine removal) can be more complex and costly. Always follow a reliable service manual and ensure the pump is correctly primed and installed.
• Can I rebuild or reuse an old oil pump? In most passenger-car applications, oil pumps are not serviced or rebuilt; instead, a new (or remanufactured) unit is installed. Rebuilding requires precise measurements of tolerances, which is typically beyond home or shop repair. If the pump is worn or damaged, replacement is the recommended route.
