Comprehensive Overview of Brake Caliper: Construction, Types and Symptom

Abstract

1. Brake calipers are essential for slowing or stopping a vehicle by creating friction with the brake rotors.
2. There are mainly two types: floating (sliding) calipers, common in everyday cars, and fixed calipers, used in high-performance vehicles.
3. Signs of issues include squeaking noises, warning lights, pulling to one side, and brake fluid leaks, suggesting inspection is needed.
4. Regular maintenance is crucial, as faulty calipers can reduce braking efficiency and increase accident risks.

What Are Brake Calipers?

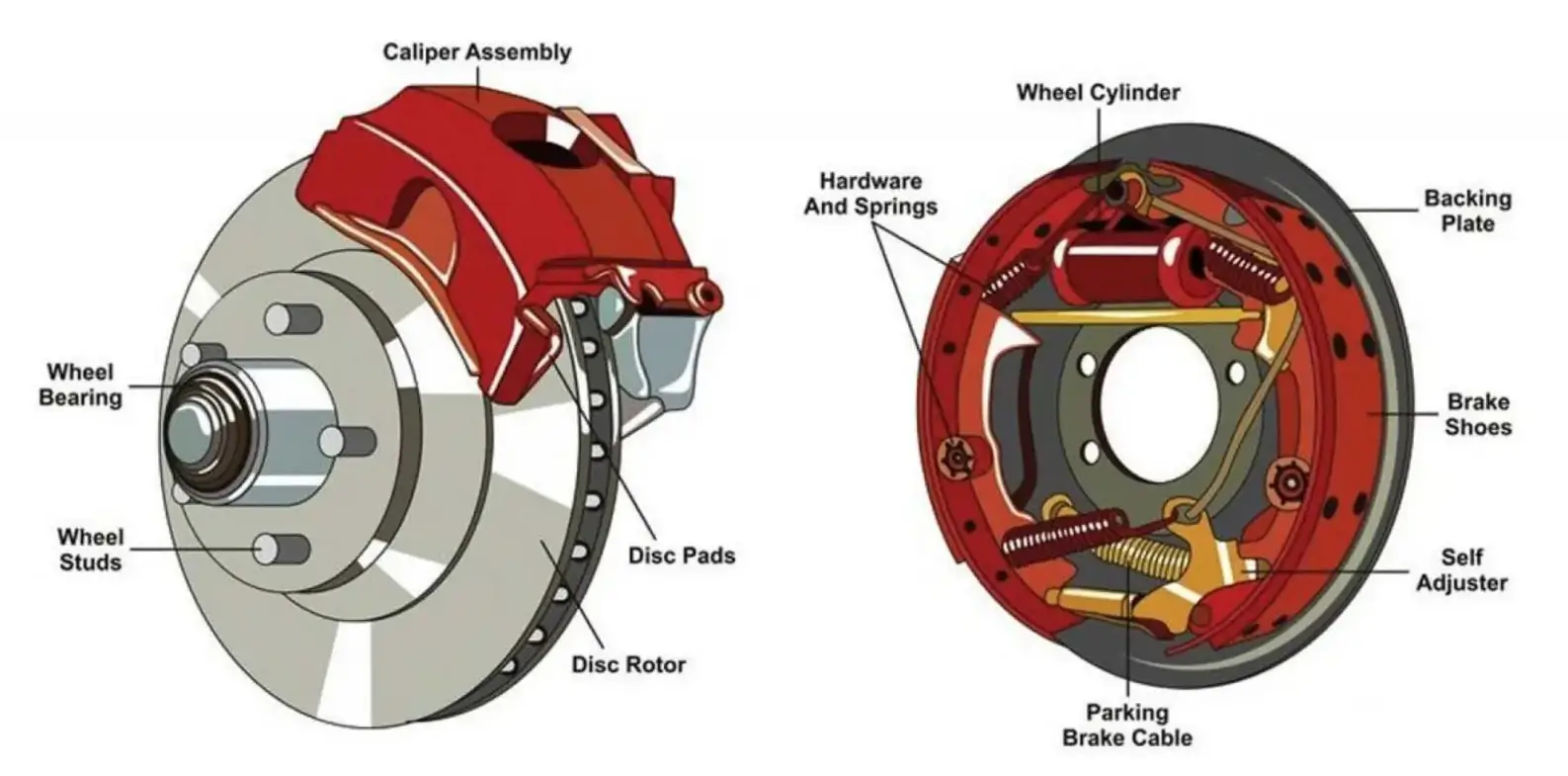

Brake calipers are a vital part of your car's disc brake system. They house the brake pads and pistons, and their job is to create friction with the brake rotors to slow down or stop your vehicle. When you press the brake pedal, hydraulic pressure from the master cylinder forces the pistons to push the brake pads against the rotor, reducing the wheel's speed.

Types of Brake Calipers

There are two main types:

• Floating (Sliding) Calipers: These have pistons on one side and move in and out relative to the rotor. They are cost-effective and common in most everyday vehicles.
• Fixed Calipers: These have pistons on both sides and don't move, offering stronger, more even braking power, often found in high-performance cars.

Importance of Maintenance

Keeping brake calipers in good condition is crucial for safety. Worn or malfunctioning calipers can lead to reduced stopping power, longer stopping distances, and uneven braking, all of which increase the risk of accidents. Regular checks help ensure your brakes work reliably.

Signs of Problems

Watch for signs like continuous squeaking or grinding noises, the brake or ABS warning light coming on, the car pulling to one side when braking, needing to pump the brakes, an unusually soft or hard brake pedal, or brake fluid leaks around the wheels. If you notice any of these, it's wise to have them inspected by a mechanic.

Comprehensive Overview of Brake Calipers

Brake calipers are a fundamental component of a vehicle's braking system, playing a critical role in ensuring safety on the road. This section provides a detailed exploration of their function, types, maintenance needs, and signs of potential issues, drawing from various reputable sources to offer a thorough understanding for vehicle owners and enthusiasts.

Function and Mechanism

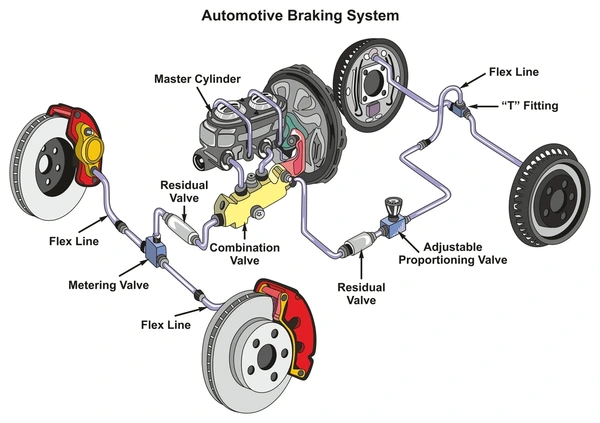

Brake calipers are part of the disc brake system, which is standard in most modern vehicles, particularly for front brakes. Their primary function is to create friction with the brake rotors to slow down or stop the vehicle. When the driver presses the brake pedal, hydraulic pressure from the master cylinder is transmitted to the caliper. This pressure forces the pistons within the caliper to push the brake pads against the rotor, generating the necessary friction to decelerate the wheel. For floating calipers, the piston pushes the inner pad, and the caliper slides to apply the outer pad, while fixed calipers use pistons on both sides to simultaneously press both pads against the rotor, ensuring even pressure.

This mechanism is essential for effective braking, and the caliper's ability to respond quickly and glide smoothly is crucial, especially during sudden stops. The process involves not just the caliper but also brake fluid, pads, and rotors, all working together to ensure safety.

Key Components and Construction

A typical brake caliper consists of:

• Caliper housing: The main body that supports and encloses the internal components.
• Pistons: Cylindrical components that move outward under hydraulic pressure to press the pads against the rotor.
• Seals and dust boots: Prevent brake fluid leaks and protect the pistons from contaminants.
• Brake pad clips: Hold the pads in place within the caliper.
• Bleeder screw: Used to remove air from the brake system during maintenance.

Calipers are usually made from robust materials like cast iron, aluminum alloys, or, for high-performance applications, lightweight composites or titanium to withstand the forces and heat generated during braking.

Types of Brake Calipers

Brake calipers come in several variations, but the two primary types for passenger vehicles are floating (sliding) calipers and fixed calipers, with additional specialized types for motorcycles, trucks, and high-performance applications.

• Floating (Sliding) Calipers: These calipers have one or two pistons located on the inboard side of the rotor. When activated, the piston pushes the inner brake pad against the rotor, and the caliper slides to bring the outer pad into contact, creating friction. They are commonly used in everyday vehicles due to their simplicity, lower cost, and ease of maintenance. Their design allows for movement relative to the rotor, making them suitable for standard driving conditions .
• Fixed Calipers: In contrast, fixed calipers do not move and have pistons on both sides of the rotor. This design provides more even and powerful braking, making them preferred for high-performance vehicles. Some models feature multiple pairs of pistons, with up to six pairs total, enhancing stopping power and heat dissipation. However, they are more expensive and complex to maintain, often found in sports cars and performance-oriented vehicles.
• Specialized Types: The survey also notes motorcycle brake calipers, which are typically small and lightweight, often made of aluminum, and can have 2, 4, or up to 12 pistons, with radially mounted designs to reduce vibration. Truck brake calipers are designed for high clamping force, determined by the number of pistons and brake pad surface area, requiring good ventilation to manage heat. High-performance calipers may include features like bigger pistons, differential bore designs (smaller pistons up front, larger toward the back), and enhanced heat management for superior stopping power.

For the purpose of this response, focusing on passenger vehicles, the distinction between floating and fixed calipers is most relevant, given their prevalence and the user's likely context.

Importance of Maintenance

Maintaining brake calipers is crucial for vehicle safety, as they are part of the most important safety system in a car. Worn or faulty calipers can lead to reduced stopping power, increased stopping distances, and uneven braking, all of which heighten the risk of accidents. Factors such as heat, road grime, debris, salt, rust, and corrosion can damage brake pads, rotors, and calipers, potentially leading to severe safety hazards. Regular visual checks during routine maintenance are recommended, and it's advised not to wait for brake pads to wear out before addressing potential issues, as seen in the practices of experienced technicians.

Common problems include seized pistons, which can cause pads to lock onto the discs, leading to excessive wear and overheating, a significant safety hazard. Other issues include worn piston seals causing brake fluid leaks, contaminated brake fluid leading to internal rust and seizing, and stuck handbrake levers in calipers with such features, preventing proper release. Consistent maintenance of brake pads, fluid, and rotors helps prevent damage to the calipers, ensuring they remain responsive and effective.

Signs of Potential Issues

Recognizing the signs of a bad brake caliper is essential for timely intervention. The following table summarizes the symptoms, based on insights from automotive experts:

These symptoms, highlight the need for professional inspection if observed, as they can compromise braking efficiency and safety. Additional causes of failure, such as not flushing road salts, letting friction material wear below 4/32 inches (3 mm), or hardware corrosion from lack of grease, were noted, emphasizing the importance of regular maintenance.

Practical Considerations

For vehicle owners, understanding when to replace calipers is important. While they do not need frequent replacement, issues like seized pistons, leaks, or significant wear necessitate action.

In summary, brake calipers are integral to vehicle safety, with their function, types, and maintenance needs requiring attention to ensure reliable braking. By staying informed about potential issues and maintaining regular checks, drivers can enhance their vehicle's performance and safety on the road.

Frequently Asked Questions About Brake Calipers

What are brake calipers and what do they do?
Brake calipers are a critical component of disc brake systems. They house the brake pads and pistons, and their main function is to squeeze the brake pads against the rotor to generate the friction needed to slow or stop your vehicle.

What types of brake calipers are there?
There are two main types: fixed and floating (or sliding) calipers. Fixed calipers have pistons on both sides of the rotor and offer more consistent braking, often used in high-performance vehicles. Floating calipers have pistons on only one side and are more common in everyday vehicles due to their simplicity and lower cost.

How do I know if my brake calipers are failing?
Common symptoms of faulty calipers include:

· Uneven brake pad wear

· Vehicle pulling to one side when braking

· Unusual noises (squealing, grinding)

· Leaking brake fluid

· A spongy or soft brake pedal
If you notice any of these signs, your calipers may need inspection or replacement.

How often should brake calipers be replaced?
There’s no set interval, but calipers should be replaced when they show significant wear, corrosion, persistent leaks, or if the pistons seize and cannot be repaired. Regular inspection during brake service is recommended.

Are brake calipers universal?
No, calipers are designed for specific makes, models, and years. Always check your vehicle’s specifications for compatibility before purchasing replacements.

What materials are brake calipers made from?
Common materials include cast iron (durable and heat-resistant, often used in heavy-duty or high-performance applications) and aluminum (lighter, improves fuel efficiency and handling, but may be less robust under extreme conditions).

Can brake calipers be repaired, or do they need to be replaced?
Minor issues like sticking pistons or worn seals can sometimes be fixed with a rebuild kit. However, severe corrosion, damage, or persistent leaks usually require full replacement.

What maintenance do brake calipers require?
Regular visual inspection for leaks, corrosion, and wear is important. Cleaning and lubricating moving parts, such as guide pins, can prevent sticking and ensure smooth operation. Replace seals as needed and bleed the brakes after any caliper work to remove air from the system.

How do I choose the right replacement caliper?
Consider compatibility with your vehicle, the type (fixed or floating), material, number of pistons, brand reputation, and warranty. Investing in quality calipers can improve safety and reduce long-term costs.

What happens if I neglect brake caliper maintenance?
Neglect can lead to reduced braking efficiency, uneven pad wear, damage to other brake components, and in severe cases, brake failure. Regular maintenance ensures safety and extends the lifespan of your braking system.
