Cogged V Belt: The Ultimate Guide to Unlocking Performance

Introduction to Cogged V Belts

Ever wondered why some machines run smoother, last longer, and handle tougher jobs than others? The answer often lies in the details—like the type of drive belt they use. If you’ve ever replaced a belt on your workshop machinery or industrial system, you’ve likely faced the choice between a standard V-belt and something called a cogged V belt. But what exactly sets these apart, and why are more professionals making the switch?

Let’s break it down: a cogged V belt is an advanced version of the classic V-belt, designed for high-performance applications. While both types share a trapezoidal cross-section that fits snugly into V-shaped pulley grooves, the cogged V belt features a series of precisely engineered notches—or "cogs"—on its underside. These aren’t teeth for timing, but relief cuts that make a big difference in how the belt performs.

How does this compare to the traditional smooth or wrapped V-belt? Standard V-belts have a continuous, unbroken inner surface. They’re reliable, affordable, and ideal for basic power transmission needs. But when you demand more—think higher speeds, tighter pulley configurations, or heavy-duty loads—the smooth belt can fall short. That’s where the cogged design shines.

• Improved Flexibility: The notched underside allows the belt to bend more easily around smaller pulleys, reducing internal stress and extending service life.
• Superior Heat Dissipation: Cogs increase airflow and surface area, helping the belt stay cooler under load.
• Higher Power Transmission Efficiency: Less bending resistance means more power reaches your equipment, boosting overall system performance.

This guide is here to help you understand the cogged V belt advantages in detail. We’ll explore how the design works, why it matters for your machinery, and how to select the right belt for your needs. Whether you’re upgrading an industrial drive or troubleshooting a fleet vehicle, you’ll find practical advice to maximize reliability and efficiency.

Ready to discover what makes cogged V belts a game-changer in modern power transmission? Let’s get started by diving into their unique construction and the science behind their performance benefits.

Understanding the Raw Edge Cogged Belt Design

When you pick up a raw edge cogged belt, it might look like a simple strip of rubber at first glance. But have you ever wondered what makes it different from the traditional V-belt you’ve seen before? Let’s break down its unique construction—and why those differences matter for your machinery’s performance.

What Does “Raw Edge” Really Mean?

Sounds complex? Actually, the concept is straightforward. In a standard, wrapped V-belt, the entire belt—sides and all—is covered in a protective fabric layer. This wrap gives the belt a smooth, uniform appearance and helps resist abrasion. But with a raw edge cogged belt, the sides are left exposed, or “raw.” There’s no fabric wrap on the sidewalls, only the core rubber compound and reinforcement cords.

Why does this matter? The exposed sides of a raw edge belt create a higher coefficient of friction against the pulley. Imagine gripping a smooth bar versus a textured one—the textured surface gives you a firmer hold. Similarly, the raw edge sidewalls allow the belt to grip the pulley more effectively, reducing slippage and enabling it to transmit more power at higher speeds. This is especially noticeable in high-torque or fast-running systems, where every bit of grip counts.

The Notched Underside: Cogs That Make a Difference

Flip the belt over and you’ll see its defining feature: a series of notches or “cogs” cut into the underside. These aren’t timing teeth—so don’t confuse them with the synchronous belts used in camshaft drives. Instead, these notches are engineered reliefs that allow the belt to bend more easily around smaller pulleys. This flexibility is key for modern, compact machinery where space is tight and pulley diameters are smaller than ever.

But there’s more. The cogs also increase the belt’s surface area and create small pockets for air movement, helping to dissipate heat generated during operation. This results in cooler running temperatures and longer belt life—crucial for demanding industrial and automotive environments.

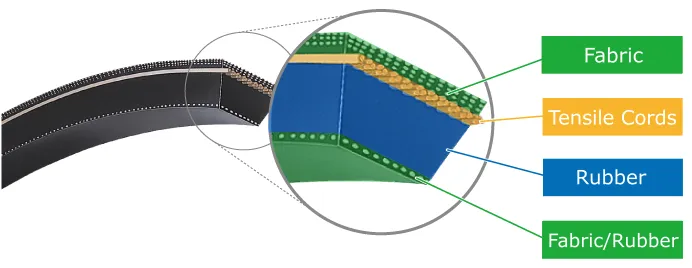

Breaking Down Cogged V Belt Construction

So, what exactly goes into a raw edge cogged belt? Here’s a closer look at its core components and their functions:

• Tension Cords: Running longitudinally through the belt, these high-strength fibers (often polyester or aramid) are the backbone of the belt, handling the majority of the tensile load and preventing excessive elongation.
• Compression Section: Made of specially formulated rubber, this section sits beneath the tension cords and absorbs compressive stresses as the belt bends around pulleys, ensuring smooth operation and durability.
• Cogs/Notches: The notched underside, or “cogs,” provides engineered flexibility, allowing the belt to wrap tightly around small pulleys and enhancing heat dissipation. These are not timing teeth, but relief cuts designed for performance.
• Raw Edge Sidewalls: With no fabric wrap, these exposed rubber sides grip the pulley groove more directly, reducing slippage and increasing power transmission efficiency.

Imagine your belt as a team, with each component playing a specialized role. The tension cords provide strength, the compression section absorbs shocks, the cogs add flexibility and cooling, and the raw edge sidewalls ensure a secure grip. Together, they create a belt that’s optimized for modern, high-demand applications.

Understanding this construction is the first step to appreciating why the raw edge cogged design delivers superior performance. As you’ll see next, these features directly translate into real-world advantages—especially when it comes to flexibility and heat management.

How Cogs Improve Flexibility and Heat Dissipation

Ever tried to force a stiff belt around a small pulley, only to watch it crack or slip after a few months? If so, you’ve seen firsthand how flexibility—and heat management—can make or break your drive system. This is where the cogged V belt design truly shines, offering key advantages over traditional options. Let’s explore how those simple-looking notches unlock next-level performance.

Engineered Flexibility: The Secret to Small Pulley Power

Imagine you’re working with compact machinery, where space is tight and pulleys are smaller than your palm. A standard V-belt, with its solid construction, resists bending sharply around these tight turns. The result? Extra internal stress, material fatigue, and a shorter service life.

Now picture a flexible V belt—specifically, a cogged version. Those notches on the underside aren’t just for show. Here’s what they do:

• Reduce Bending Resistance: Each cog acts as a relief point, allowing the belt to flex more easily as it wraps around the pulley. This means less energy is wasted overcoming stiffness and more gets transferred to your equipment.
• Lower Internal Stress: By making the belt more pliable, cogs help distribute forces evenly, minimizing the risk of cracking, fraying, or premature failure.
• Enable Use with Smaller Pulleys: Because it bends with less effort, a cogged V belt can be used in drives with much smaller diameters than a smooth belt could handle.

The result? Longer belt life, less downtime, and the freedom to design more compact, efficient machines.

Superior Heat Dissipation: Keeping Your Belt Cool Under Pressure

Ever noticed how a belt gets hot after hours of running? That heat comes from friction and bending resistance. If it builds up too much, the belt’s material can degrade, leading to hardening, cracking, or even failure.

The notched design of a cogged V belt tackles this problem in two smart ways:

• Increased Surface Area: The cogs create more exposed surface on the belt’s underside, allowing heat to escape more rapidly than from a smooth, solid belt.
• Air Turbulence: As the belt moves, the gaps between cogs stir up airflow, actively cooling the belt and the pulley groove. This reduces the risk of heat-related damage—even in high-speed or heavy-duty applications.

By running cooler, cogged belts last longer and maintain their flexibility, which is especially important in demanding environments where reliability is critical.

Why These Advantages Matter

• Extended Service Life: Less heat and lower internal stress mean fewer replacements and less maintenance.
• Consistent Performance: Cooler operation ensures the belt maintains its grip and flexibility over time, boosting efficiency.
• Versatility: The ability to work with smaller pulleys opens up new design possibilities, letting you build more compact and powerful drives.

So, next time you’re weighing your options, remember: the real cogged V belt advantage isn’t just in the notches you see—it’s in the flexibility, cooling, and reliability those notches deliver, drive after drive. Up next, we’ll compare these benefits side by side with traditional smooth V-belts, giving you a clear view of which is best for your application.

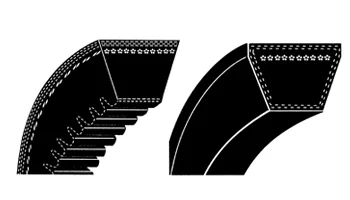

Cogged vs Smooth V-Belts

When you’re staring at a parts catalog or standing in front of your machinery, the choice between a cogged V belt and a traditional smooth V-belt can seem overwhelming. Which one should you pick? Does the notched design really make a difference, or is it just hype? Let’s break down the essentials so you can make the best decision for your equipment.

Understanding the Key Differences

Imagine you’re upgrading an older machine or designing a new drive system. You’ll notice that both types of belts have their place, but their performance varies in a few critical areas. The right choice depends on your priorities—whether it’s cost, longevity, efficiency, or handling tough conditions. To make this comparison crystal clear, let’s look at the main features side by side.

Which Belt Is Right for You?

Still unsure? Ask yourself a few questions:

• Is your drive running at high speed or under heavy load?
• Are you working with small-diameter pulleys or tight spaces?
• Do you want to reduce maintenance and energy costs over time?

If you answered yes to any of these, a cogged V-belt may be the upgrade your system needs. On the other hand, if your application is straightforward, cost-sensitive, or involves older equipment, the traditional smooth V-belt remains a solid, reliable choice.

Ultimately, the debate of cogged v belt vs v belt comes down to balancing your performance needs against your budget and application requirements. Think about what matters most for your operation—efficiency, longevity, or upfront savings—and let that guide your decision. In the next section, we’ll dive deeper into how these differences translate into measurable gains in drivetrain efficiency, helping you see the real-world impact of your choice.

The Impact of Cogs on Drivetrain Efficiency

When you’re tasked with optimizing a power transmission system, every bit of efficiency counts. But how much of a difference can a cogged V belt really make? Is the upgrade just a small tweak—or a game-changing improvement for your bottom line? Let’s break down the facts about cogged v belt efficiency and see how these notched belts translate design advantages into measurable, real-world savings.

How Do Cogs Boost Power Transmission Efficiency?

Imagine your drive system as a relay race. With every bend around a pulley, a standard smooth V-belt loses a bit of momentum—energy is wasted overcoming its own stiffness. Now, swap in a cogged V belt. The engineered notches on its underside act like hinges, letting the belt flex more easily with each turn. This reduced bending resistance means less energy is lost to internal friction, and more is delivered directly to your machinery.

• Reduced Bending Resistance: The notched design allows the belt to wrap tightly around small pulleys without straining, slashing the energy required for each revolution.
• Cooler Operation: Less friction means less heat, which not only preserves the belt but also keeps the entire drive system running at optimal temperatures.
• Consistent Grip: The raw edge and cogged profile maintain strong traction, minimizing slippage and ensuring steady power delivery.

Quantifying the Efficiency Advantage

Sounds impressive—but what do the numbers say? According to leading industry sources, upgrading from a standard wrapped V-belt to a cogged raw edge model typically delivers a 2% increase in efficiency—sometimes even more, depending on the application. For example, if a wrapped V-belt system operates at 93% efficiency, a cogged version can reach up to 95% under similar conditions. That may seem minor at first, but in continuous-use systems—like HVAC blowers, industrial fans, or automotive accessory drives—these savings quickly add up.

Here’s how that 2% boost plays out in practice:

• Lower Energy Consumption: Imagine a 100-hp motor running year-round. That efficiency gain could save thousands of kilowatt-hours annually, translating to significant cost reductions on your utility bills.
• Reduced Operational Costs: Cooler, more efficient operation means less wear and tear—not just on the belt, but also on pulleys, bearings, and connected equipment. This leads to fewer breakdowns and less downtime.
• Enhanced Performance: Whether you’re powering a high-speed industrial conveyor or a compact automotive engine, improved belt efficiency means more available power for the job at hand and smoother, more reliable operation.

Key takeaway: Even a small efficiency improvement can have a big impact over time, especially in systems that run around the clock or handle heavy loads.

Why Professionals Choose Advanced Cogged Belts

So, what does this mean for you as an engineer, maintenance manager, or designer? By selecting a high-quality cogged V belt—such as those engineered with precision tolerances and advanced materials—you’re not just increasing efficiency. You’re also investing in longevity, reliability, and peace of mind. For instance, products like AAASTAND’s cogged V belt are specifically crafted to maximize these gains, offering superior flexibility, enhanced heat dissipation, and a secure grip that stands up to demanding environments.

Think about it: fewer replacements, lower energy bills, and less unplanned downtime are all results you can measure. In both industrial and automotive settings, that’s the kind of advantage that pays for itself, year after year.

Curious about where these efficiency gains matter most? Next, we’ll explore the real-world applications where cogged V-belt systems deliver their biggest benefits, helping you decide if this upgrade is the right move for your machinery.

Ideal Applications for Cogged V-Belt Systems

Ever wondered where the notched design of a cogged V belt truly stands out? If you’ve faced issues like slipping belts, overheating, or limited space in your drive system, you’re not alone. The good news: cogged V-belts are engineered to solve these exact challenges—and more. But what is a cogged V belt used for in real-world scenarios? Let’s explore the industries and machinery where these belts deliver their biggest advantages.

Where Cogged V-Belts Excel: Key Applications

Imagine you’re running equipment that demands both reliability and efficiency. In these cases, the unique features of cogged V-belts—like enhanced flexibility, superior grip, and better heat management—make a measurable difference. Here are some of the most common and effective cogged V belt applications:

• High-Speed, Small Pulley Drives

• Industrial HVAC Systems

• Agricultural Equipment

• Workshop and Manufacturing Machinery

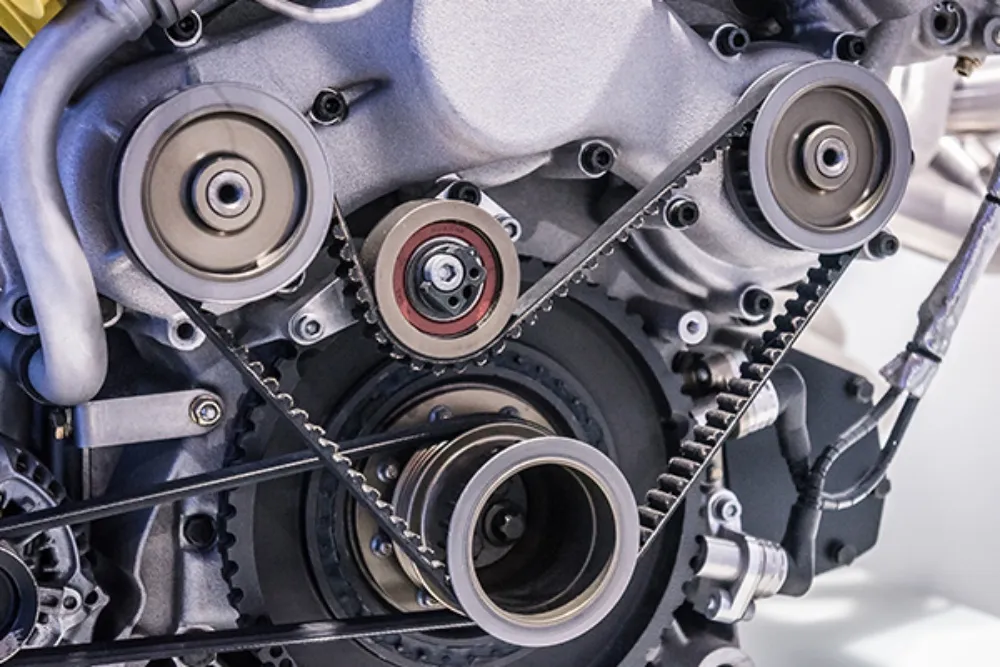

• Automotive Accessory Drives


Why Choose Cogged V-Belts for These Applications?

Still not sure if this upgrade fits your needs? Here’s why these belts are often preferred in demanding environments:

• Enhanced Flexibility: Notches allow the belt to wrap tightly around small pulleys without excessive stress.
• Superior Grip: The raw edge and cogged profile minimize slippage, even as pulleys age or conditions become challenging.
• Better Cooling: Increased surface area and airflow mean the belt stays cooler, extending its lifespan and reducing maintenance.
• Versatility: Suitable for a wide range of machinery—from industrial plants to farm fields and automotive engines.

In short, whether you’re aiming for higher efficiency in your HVAC system, greater reliability in your tractor, or smoother operation in your workshop, cogged V-belts are often the smart, future-ready solution. Next, we’ll look at how these belts are adapted for even more demanding situations—like multi-belt drives—by exploring banded cogged V-belt variations.

Exploring Banded Cogged V-Belt Variations

Ever noticed how some belt drives seem to vibrate, twist, or even jump out of their grooves—especially when running over long distances or under heavy, pulsing loads? If you’ve faced these headaches, you’ll want to know about a powerful solution: the banded cogged V belt. But what exactly sets these belts apart from their single-strand cousins, and why are they the go-to choice for tough, high-vibration situations?

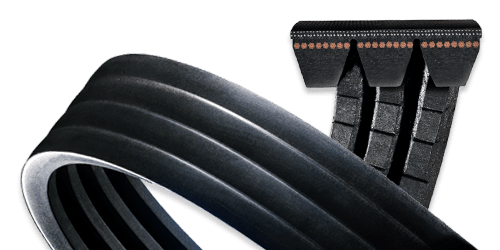

What Makes a Banded Cogged V-Belt Different?

Imagine several cogged V-belts—each with those familiar notches for flexibility and cooling—lined up side by side. Now, picture a strong, reinforced tie-band joining them across the top, turning multiple belts into a single, unified unit. That’s the essence of a banded cogged V-belt: a bundle of cogged belts permanently bonded together by a tie-band, designed to act as one cohesive drive element.

• Multiple Cogged Belts: Each rib retains the flexibility, heat dissipation, and grip of a standard cogged V-belt.
• Reinforced Tie-Band: A tough, engineered band across the top holds all the ribs together, ensuring they move in perfect alignment.

Sounds simple? The impact is huge in the right application.

Problems Solved by Banded Cogged V-Belts

When you run a single belt across long distances or in systems with heavy shock loads, you might notice issues like:

• Belt Whip: The belt flutters or vibrates, especially at high speeds or when loads suddenly change.
• Turnover and Rollover: The belt can twist or even flip out of the pulley groove, causing misalignment or unexpected stoppages.
• Jumping Off: In the worst cases, a belt can jump completely out of its track, halting your system and risking equipment damage.

Here’s where the banded cogged V-belt shines. The tie-band adds lateral rigidity, holding all the belt ribs in a straight line as they enter and exit the pulley grooves. This extra stability:

• Prevents individual belts from wandering or twisting under load
• Reduces wear by keeping the belt aligned, even during strong pulsating or shock loads
• Ensures even load distribution across all ribs, maximizing lifespan and efficiency

According to industry experts, this design is especially valuable in drives with long center distances, high vibration, or where multiple belts must work together without the risk of one lagging behind or failing prematurely.

Where Do Banded Cogged V-Belts Excel?

Wondering if you need this upgrade? Here are some scenarios where banded cogged V-belts are the top choice:

• Large Industrial Blowers and Fans: Long spans and high speeds make single belts prone to whip and vibration.
• Heavy Machinery with Shock Loads: Equipment like crushers, shredders, or agricultural harvesters, where torque spikes are common.
• Multi-Belt Drives: Systems that require several belts to transmit power evenly, such as large compressors or conveyor systems.
• High-Vibration Environments: Any drive exposed to frequent pulsing or sudden stops and starts.

In all these cases, the banded design keeps your drive system running smoother, longer, and with fewer unexpected interruptions. You’ll notice less maintenance, reduced downtime, and more consistent performance—no matter how tough the job gets.

Curious about choosing the right size or configuration for your application? Next, we’ll walk through a practical guide to selecting the correct cogged V-belt size, so you can match your drive system with precision and confidence.

A Guide to Selecting the Correct Cogged V-Belt Size

Ever stood in front of your equipment, old belt in hand, and wondered, “How do I pick the right replacement?” Sounds complex? It doesn’t have to be. With the right approach—and a little know-how about cogged v belt sizes—you can ensure your drive system runs at peak efficiency, avoids costly downtime, and gets the most out of every belt you install.

Decoding Cogged V-Belt Nomenclature

When you see belt codes like AX, BX, or 3VX, what do they really mean? Let’s break it down:

• Letter(s): Indicate the cross-section or profile (e.g., A, B, C, 3V, 5V). This defines the width and height of the belt.
• X: The 'X' at the end (AX, BX) signals a cogged or notched construction—so AX is a cogged A-section belt.
• Numbers: Usually represent the belt’s length, often the inner circumference in inches (e.g., AX22 = 22-inch inner circumference).

For example, a BX40 is a cogged B-section belt with a 40-inch inner circumference, while a 3VX400 is a cogged 3V-section belt, also referencing length. This system is consistent across most manufacturers, making it easier to match or upgrade your current belt.

Step-by-Step: How to Choose the Right Size

Worried about making a sizing mistake? Here’s a practical, foolproof process—whether you have the old belt on hand or not:

• 1. Identify the Cross-Section

• 2. Determine the Correct Length

• 3. Confirm the Cogged Type


Here’s a quick visual reference for common cogged V-belt profiles:

Common Sizing Pitfalls—and How to Avoid Them

• Mixing Up Inside and Outside Lengths: Always double-check which measurement your supplier uses. If you order based on the wrong one, the belt may be too tight or too loose.
• Overlooking Profile Differences: Even a few millimeters off in width or height can cause slippage, excessive wear, or damage to your pulleys.
• Forgetting the 'X': Accidentally ordering a wrapped (non-cogged) belt can result in poor flexibility and heat issues in demanding drives.

Remember, industrial machinery relies on precision. “Measure twice, order once” is the golden rule. If you’re ever in doubt, use your existing belt as a reference or consult a trusted supplier for expert advice.

Why Quality and Certification Matter

Choosing the right size is only half the battle. To truly maximize reliability and efficiency, opt for precision-engineered, certified belts from reputable sources. Suppliers like AAASTAND offer belts manufactured to exacting tolerances and industry standards, ensuring consistent performance, reduced risk of failure, and peace of mind for demanding applications.

Getting the size right sets the foundation for drive system performance—but pairing that with certified quality ensures your investment delivers lasting value. Next, let’s see how these belts integrate seamlessly with standard pulleys, making upgrades and replacements smooth and straightforward.

Matching Cogged Belts with Standard Pulleys

When you’re ready to replace a worn belt, you might wonder—can a cogged V belt work with your existing pulleys, or will you need to overhaul your entire drive setup? Sounds like a hassle, right? The good news: most of the time, switching to a cogged V belt is as simple as dropping it into your current cogged v belt pulley system, with no special modifications required.

Are Cogged V-Belts Compatible with Standard Pulleys?

Imagine you’ve always used traditional smooth V-belts on your equipment. Now, you’re considering the benefits of a notched or cogged design. The logical question is—will a cogged belt fit and perform properly in the same pulleys? Here’s the answer: yes. Cogged V-belts are engineered to match the same trapezoidal profile as standard V-belts, meaning they fit perfectly into standard V-groove pulleys found on most industrial, automotive, and agricultural machinery.

• Drop-in Replacement: You can swap out a smooth V-belt for a cogged one without changing your pulleys, as long as the cross-section and length match.
• No Special Pulleys Needed: Unlike timing belts (which require toothed pulleys), cogged V-belts are designed for standard V-groove pulleys—making upgrades straightforward and cost-effective.
• Consistent Performance: Because the belt’s notches are on the underside, they don’t interfere with the pulley’s grip or alignment.

In short, if your equipment manual lists a standard V-belt size, you can almost always use the matching cogged version for improved flexibility and efficiency.

Why Pulley Condition Matters for Belt Life

But before you install that new cogged belt, take a closer look at your pulleys. Even the best belt can’t deliver peak performance if the pulley is worn, corroded, or misaligned. Imagine putting new tires on a car with bent wheels—sooner or later, you’ll face problems again.

• Inspect for Wear: Use a sheave gauge to check for groove wear. Grooves that are shiny, rusted, pitted, or misshapen can rapidly wear down your new belt and cause premature failure.
• Check for Corrosion: Corroded pulleys accelerate belt wear and can even cause the belt to slip or jump.
• Ensure Proper Alignment: Misaligned pulleys put uneven stress on the belt, leading to noise, vibration, and reduced efficiency.

Simple steps like cleaning pulleys, replacing damaged ones, and checking alignment can dramatically extend the service life of your new cogged V-belt. Think of it as preventive maintenance that pays off in fewer breakdowns and smoother operation.

Pro Tips for a Trouble-Free Upgrade

• Always replace all belts in a multi-belt drive at the same time to ensure even load sharing.
• Stick with belts from the same manufacturer for consistent tension and performance.
• After installation, run the system briefly and recheck belt tension and pulley alignment.

By following these best practices, you’ll maximize the benefits of your cogged belt pulley system—enjoying longer belt life, less maintenance, and better efficiency. Ready to see how these small changes can make a big impact? In the final section, we’ll summarize why upgrading to a high-quality cogged V-belt is a strategic move for performance and reliability.

Conclusion

When you look back at the journey through this guide, one thing becomes crystal clear: the right belt can transform the way your equipment performs. But what’s the real payoff when you choose a high performance cogged V belt over a standard option? Let’s recap the most important takeaways, and see how a strategic upgrade pays off in both the short and long term.

Why Cogged V Belts Stand Out

Imagine you’re running a critical piece of machinery—maybe an HVAC system that can’t afford to stop, or a production line where every minute of downtime costs money. In these situations, the benefits of a cogged V belt aren’t just nice-to-have—they’re essential. Here’s what you gain by making the switch:

• Higher Efficiency: The notched design reduces bending resistance, delivering more power where it counts and cutting energy waste by up to 2% compared to standard belts.
• Longer Service Life: Cooler operation and reduced internal stress mean fewer replacements, less maintenance, and more uptime for your equipment.
• Improved Flexibility: The cogs let the belt wrap tightly around small pulleys, opening up new design possibilities and supporting compact, high-speed drive systems.
• Superior Heat Dissipation: Increased airflow and surface area keep the belt cool—even under heavy loads or continuous use.

Sounds like a win? Absolutely. But here’s the catch: not all cogged V belts are created equal. To truly unlock these advantages, you need a belt that’s engineered with precision, made from high-quality materials, and backed by a supplier who stands behind every product.

Choosing the Best Cogged V Belt: What to Look For

So, how do you ensure you’re getting the best cogged V belt for your needs? Consider these factors:

• Precision Engineering: Look for belts manufactured to tight tolerances (≤ ±0.01 mm) and certified under ISO 9001 / IATF 16949 standards. This ensures consistent fit, reliable performance, and compatibility with demanding machinery.
• Material Quality: High-grade rubber compounds and advanced tension cords mean better flexibility, longer life, and superior resistance to heat and oil.
• Supplier Reputation: Choose a provider with a proven track record, robust supply chain, and value-added support—so you’re never left waiting for parts or troubleshooting on your own.

AAASTAND’s cogged V belt, for example, is engineered to meet these exact criteria. With a focus on power transmission efficiency, advanced raw edge construction, and rigorous quality control, it delivers the reliability and performance that professionals demand. Plus, their comprehensive product portfolio, OEM services, and rapid global logistics make them a trusted partner for repair shops, manufacturers, and distributors alike. You can explore more about their offerings here: AAASTAND Cogged V Belt.

Is the Upgrade Worth It?

Still on the fence? Ask yourself:

• Do you want to reduce energy and maintenance costs over the life of your equipment?
• Is downtime a major concern for your operation?
• Would your business benefit from future-proof, globally supported components?

If you answered yes to any of these, upgrading to a high performance cogged V belt is more than just a maintenance decision—it’s a strategic investment in efficiency, reliability, and peace of mind.

Key takeaway: The best cogged V belt doesn’t just keep your machinery moving; it protects your investment, boosts productivity, and sets your operation up for long-term success.

Ready to take the next step? Whether you’re a maintenance technician, engineer, or procurement manager, choosing a precision-engineered, certified cogged V belt from a trusted partner ensures you realize every documented advantage—and future-proofs your machinery for whatever challenges lie ahead.

Frequently Asked Questions About Cogged V Belts

1. What is a cogged V-belt?

A cogged V-belt is an advanced power transmission belt featuring notches or cogs on its underside. These cogs are relief cuts that increase flexibility and improve heat dissipation, allowing the belt to bend easily around small pulleys and run cooler than traditional smooth V-belts. This design results in higher efficiency and longer service life, making cogged V-belts ideal for demanding applications.

2. Should V belts be cogged?

Cogged V-belts are recommended when your system requires higher efficiency, superior flexibility, or operates with small pulleys and high speeds. They offer better grip, reduce slippage, and can often be used as direct replacements for smooth V-belts without changing pulleys. For critical or high-performance machinery, choosing a cogged V-belt can lead to measurable energy savings and reduced maintenance.

3. Which is better cogged or flat V-belt?

Cogged V-belts typically outperform flat or smooth V-belts in terms of flexibility, heat management, and overall efficiency. They are especially effective in high-torque or compact systems, as their notched design reduces bending resistance and improves power transfer. However, for simple, low-cost applications, flat V-belts may be sufficient.

4. What are notched V belts used for?

Notched or cogged V-belts are used in power transmission systems that demand high reliability, such as industrial machinery, HVAC units, agricultural equipment, and automotive engines. Their design allows them to handle high speeds, tight pulley configurations, and heavy loads, making them suitable for modern, space-efficient drive systems.

5. How do I select the correct cogged V-belt size?

To select the right cogged V-belt size, identify your belt’s profile (such as AX, BX, or 3VX), measure the required belt length, and ensure you choose a cogged version with the 'X' designation. Always refer to a size chart and use precise measurements from your old belt or pulley setup. For optimal performance, choose certified, high-quality belts from reputable suppliers like AAASTAND.

Florian Luo
