Camshaft Position Sensor: A Comprehensive Guide

Introduction to Camshaft Position Sensors

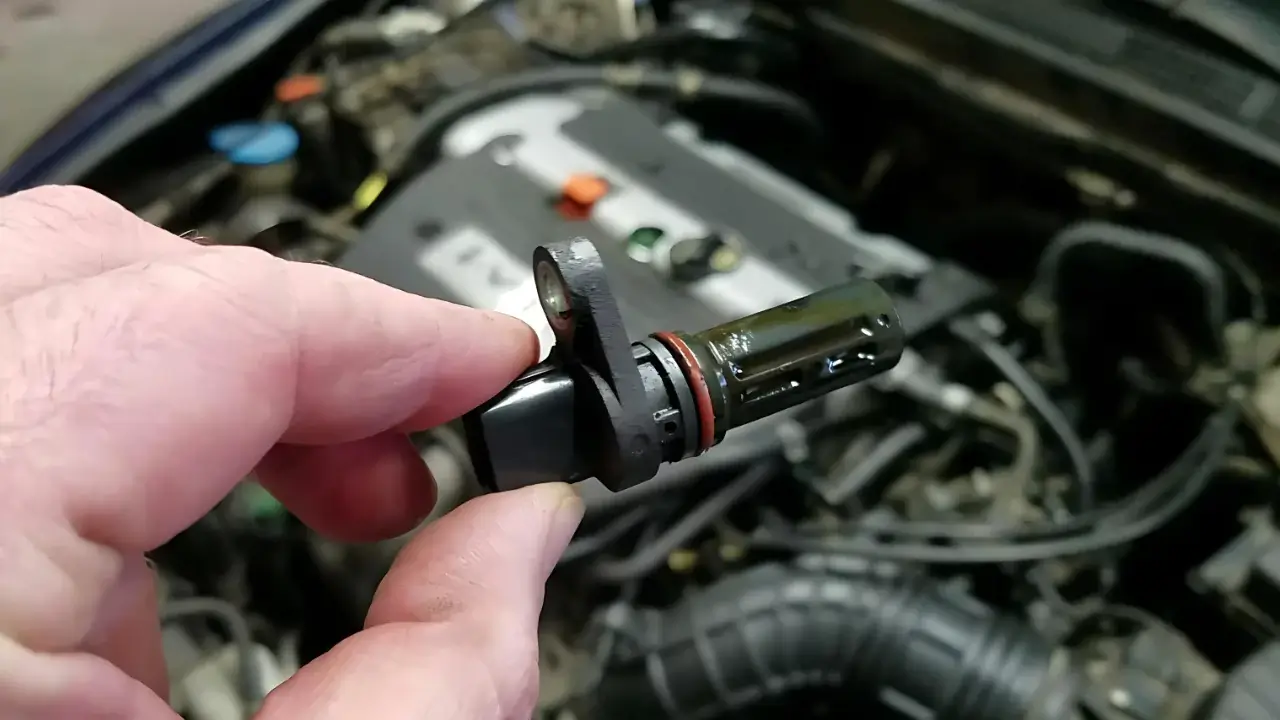

The camshaft position sensor (CMP) is a small electronic sensor that monitors the position and rotational speed of a camshaft in an internal combustion engine. It is typically a cylindrical device mounted near the camshaft (for example, on the cylinder head or timing cover) with a wiring connector (usually 2–4 wires) attached. As the camshaft spins, the sensor detects the passing of a toothed wheel or protrusion on the camshaft and generates an electrical signal. The vehicle’s Engine Control Unit (ECU) uses this signal to determine the camshaft’s exact position and phase relative to the crankshaft. This information is crucial for proper engine timing—helping the ECU identify which cylinder is firing and ensuring the engine’s ignition and fuel injection occur at the right moments.

How It Works and Key Functions in Engine Management

A camshaft position sensor works in tandem with the crankshaft position sensor to provide precise timing data to the engine’s computer. The ECU/Engine Control Module continuously monitors the cam sensor’s signal to synchronize fuel injection and spark ignition with the engine’s cycles. In essence, the CMP tells the ECU ​which stroke each cylinder is on​, so the ECU knows when cylinder #1 (and others) reach top dead center (TDC) on the compression stroke. This allows for accurate sequencing of fuel injectors and spark plugs.

Key functions enabled by the cam sensor include:

· Ignition Timing: The CMP signal helps the ECU time the spark so that each spark plug fires at the optimal point in the piston’s travel. Without a proper cam signal, the ECU might misfire or revert to a default timing mode.

· Fuel Injection Timing: In engines with sequential fuel injection, the ECU uses cam position to know when to inject fuel for each cylinder. Proper cam timing ensures fuel is injected just before the intake valve opens for that cylinder.

· Variable Valve Timing (VVT): Many modern engines adjust camshaft timing (via VVT solenoids). The cam sensor feedback allows the ECU to precisely control and adjust cam timing for performance or efficiency.

· Engine Performance & Efficiency: With accurate cam position data, the engine can run smoothly and efficiently. The CMP helps maximize power, fuel economy, and reduce emissions by ensuring combustion events are properly phased. A correct cam signal prevents issues like unburned fuel or incomplete combustion.

In short, the camshaft position sensor is vital to the engine management system. It works with the crank sensor to keep the engine’s mechanical “dance” in sync, so the vehicle starts easily, idles smoothly, and produces power reliably. If the signal is missing or erratic, the ECU can’t properly manage timing and will usually trigger a fault.

Common Symptoms of a Failing Camshaft Position Sensor

When a camshaft position sensor begins to fail or produces incorrect signals, the engine control unit may struggle to keep the engine timed correctly. This often leads to noticeable ​performance problems and error codes​. Here are typical symptoms of a bad or failing camshaft position sensor:

· Hard Starting or No Start: A faulty CMP can prevent the ECU from knowing when to fire the injectors/ignition for starting. You may experience extended cranking or the engine failing to start at all.

· Engine Stalling and Rough Running: Intermittent loss of the cam signal can cause sudden stalling (especially right after startup or at low speeds) and rough idling. The engine might sputter, shake, or even stall unexpectedly when the sensor signal cuts out.

· Misfires and Poor Acceleration: If the cam sensor’s data is erratic, the ignition/fuel timing can go off-sync, leading to engine misfires. You may feel the engine hesitate, stumble, or lack power during acceleration. The vehicle may accelerate inconsistently or lose power intermittently.

· Check Engine Light (CEL): A failing CMP usually triggers the check engine light. Common trouble codes include P0340, P0341, P0344 (camshaft position sensor circuit faults) or related codes. The CEL combined with any of the above symptoms is a strong indicator to check the cam sensor.

· Poor Fuel Mileage: In some cases, a bad cam sensor can cause the engine to run rich (injecting fuel at the wrong time), leading to increased fuel consumption and lower MPG.

· Engine in “Limp” Mode: The ECU may enter a fail-safe limp mode (reducing power and RPM) if it detects a lost cam signal, to protect the engine. This can manifest as limited speed or stuck in one gear (on some vehicles) until the issue is fixed.

Note: These symptoms can overlap with those of other issues (like a bad crankshaft sensor or ignition problems). It’s important to read the diagnostic codes and test the sensor to confirm the camshaft sensor is the culprit. Often, a failing CMP will cause a combination of a CEL and drivability problems (stalling, misfiring, etc.) that point to timing signal loss.

Diagnostic and Troubleshooting Tips

Because the camshaft position sensor is critical for engine timing, a fault is usually detected by the car’s onboard diagnostics. Here’s how to diagnose and troubleshoot a suspected camshaft sensor problem:

· Scan for OBD-II Codes: Begin by connecting an OBD-II scanner to check for stored trouble codes. A bad cam sensor typically logs codes in the P0340–P0349 range (e.g. ​P0340: Camshaft Position Sensor “A” Circuit Malfunction​). If such codes are present, it’s a strong indication of a cam sensor or its circuit issue. Note the exact code, as it can indicate whether the problem is an open circuit, intermittent signal, or incorrect correlation with the crank sensor.

· Visual Inspection: Open the hood and locate the camshaft position sensor and its wiring harness. Inspect the connector and wiring for any obvious damage: look for corroded pins, frayed wires, or oil contamination on the connector. Make sure the connector is seated properly. Many cam sensors sit in hot, vibrating areas, so their wiring can suffer over time. Repair any damaged wiring or connector issues and see if the problem persists.

· Test the Sensor with a Multimeter: You can perform basic bench tests on the cam sensor:

For a ​2-wire (magnetic inductive) sensor​: Unplug the sensor and check its resistance with a multimeter. A functional inductive CMP usually has a resistance in the range of roughly 500 to 2000 Ω (exact spec varies by model; compare with service manual). An open circuit (infinite resistance) or very high/low reading indicates a bad sensor coil. Next, you can measure AC voltage output: reconnect the sensor, set the multimeter to AC volts, and have an assistant crank the engine (with fuel disabled or ignition coils unplugged so the engine won’t start). You should see an AC voltage pulsing, often around 0.5–1.5 V AC while cranking (the voltage increases with engine speed). No AC voltage during cranking suggests the sensor isn’t generating a signal.

For a ​3-wire (Hall effect) sensor​: These have a power, ground, and signal wire. With the ignition on, use a DC voltmeter to verify the sensor’s supply voltage (usually 5 V reference from the ECU, or in some cases 12 V) on the power wire. Check that the ground is good (0 Ω to engine ground). Then test the output: backprobe the signal wire, and either crank the engine or rotate the camshaft by hand (if possible). A good Hall-effect cam sensor will toggle its output between low and high voltage as the trigger wheel passes – for example, cycling between ~0 V and ~5 V in pulses. You may see this as a fluctuating voltage on a multimeter, or ideally as a square wave if using an oscilloscope. If the power and ground are present but the signal never changes from low or high as the engine turns, the sensor may be bad.

· Cross-check with Live Data (if available): Some advanced scan tools let you watch live data such as the camshaft rpm or cam/crank sync status. If the cam signal is dropping out intermittently, you might see the cam rpm reading glitch or a loss of synchronization flag in the ECU data. This can confirm an intermittent failure.

· Eliminate Other Causes: Remember that the crankshaft position sensor works closely with the cam sensor. Sometimes an issue with the crank sensor can mimic cam sensor problems (since both are needed for timing sync). Make sure to check for crank sensor codes (P0335 range) as well. Also consider mechanical issues – a broken camshaft timing belt/chain or jumped timing can trigger cam sensor codes if the cam and crank go out of alignment.

· After Repairs – Clear Codes and Relearn: Once you have repaired or replaced the cam sensor (or related wiring), use the scanner to clear the codes. In most cases, simply installing a new CMP will allow the engine to resume normal operation. However, some vehicles may require a cam/crank relearn procedure (sometimes called a CASE relearn) after replacing the sensor or if the ECU had lost synchronization. This can often be done with an advanced scan tool via a menu function, or by following a specific drive cycle outlined by the manufacturer. Always finish by verifying that the engine starts well, runs smoothly, and that no new codes appear related to the cam sensor.

Troubleshooting summary: A healthy camshaft sensor will show a consistent output when tested (voltage pulses for inductive, or a toggling voltage for Hall effect). If you confirm that the sensor is receiving power (for 3-wire types) but not outputting a proper signal, replacement is usually the fix. If the sensor and wiring test fine, the issue could lie in the ECU or in the mechanical timing (timing belt/chain alignment). Always address any wiring issues or connector corrosion found, as those can cause the same symptoms as a bad sensor.

Step-by-Step Camshaft Position Sensor Replacement Guide

Replacing a camshaft position sensor is a relatively straightforward task on most vehicles. It typically only requires basic hand tools and can be done by a DIY enthusiast in under an hour in many cases. Always consult your vehicle’s repair manual for specifics, but below is a general procedure:

Preparation & Safety: Ensure the engine is turned off and cool before starting work to avoid burns. Disconnect the negative battery cable first to prevent any electrical shorts while you work. Gather the necessary tools – usually a set of sockets or wrenches (often an 8mm or 10mm for the sensor bolt), a screwdriver to remove any covers or brackets, and possibly a torque wrench to tighten the new sensor to spec. It’s also helpful to have an OBD-II code reader on hand to clear codes after the repair.

General Replacement Steps:

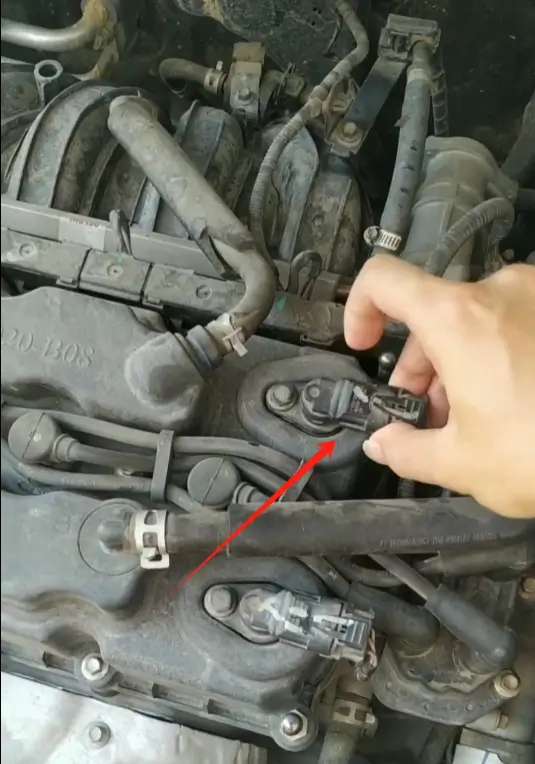

1. Locate the Sensor: Find the camshaft position sensor on your engine. Depending on the vehicle, it is often located on the cylinder head, at the front or rear of the valve cover, or on the timing cover adjacent to the camshaft gear. Some engines have more than one cam sensor (e.g. dual overhead cam engines may have separate sensors for intake and exhaust cams). If needed, remove any components blocking access – for example, you might take off an engine cover or air intake tubing to get a clear view.

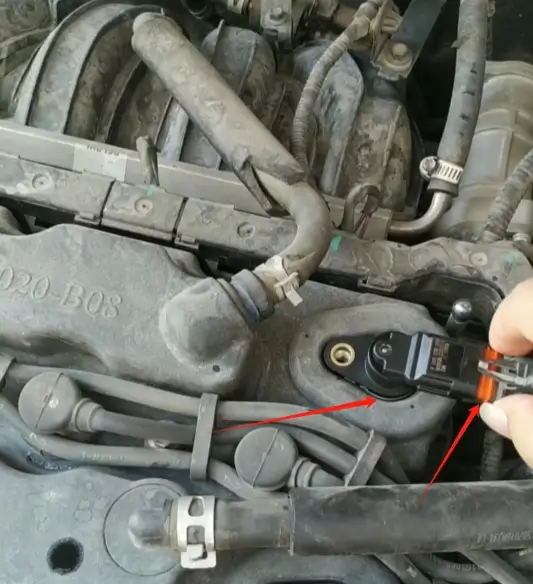

2. Disconnect the Wiring Connector: Unplug the electrical connector from the sensor. Press or lift the locking tab on the connector and pull it straight out. Tip: Check the connector for any dirt or oil – clean it if necessary, and be gentle to avoid breaking the plastic clip. On some connectors, you may need to slide a secondary locking clip out before the plug will release.

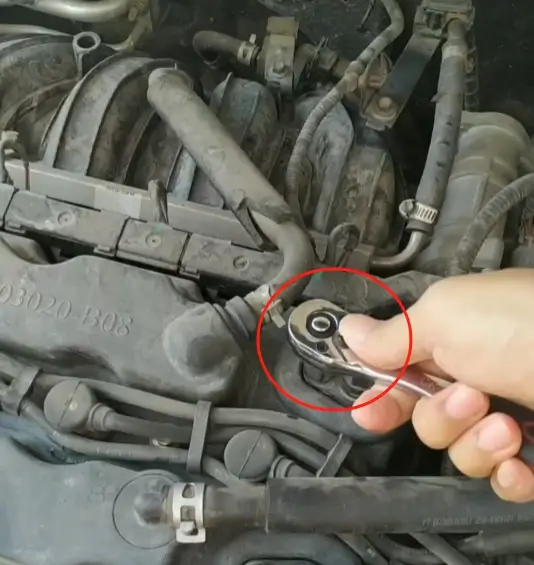

3. Remove the Sensor Mounting Bolt(s): The sensor is usually secured by one or two small bolts or screws. Use the appropriate socket or wrench to remove these fasteners. Keep them in a safe place; often the new sensor does not come with new bolts.

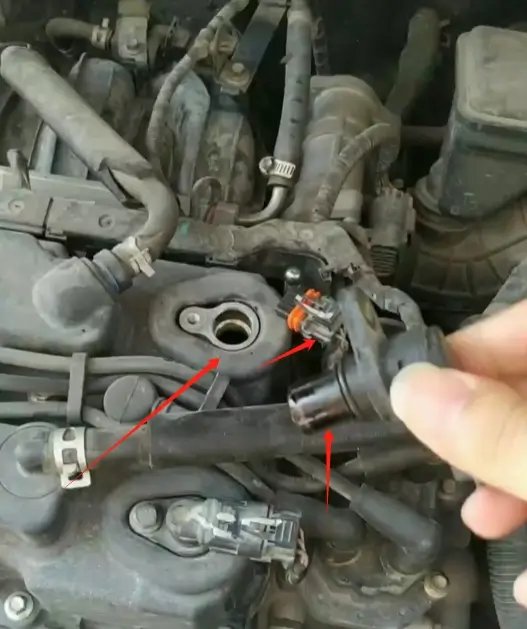

4. Pull Out the Old Sensor: Once the bolt is out, carefully pull the sensor from its hole. You might need to twist it slightly to break any seal from the O-ring. Caution: Do not pry too hard or use excessive force – the sensor (often plastic) could snap off, leaving pieces in the engine. If the sensor is stuck, apply a penetrating lubricant around it and gently work it out. Take note of the sensor’s orientation as you remove it.

5. Remove and Replace the O-Ring (if applicable): Most cam sensors have a rubber O-ring that seals oil in the cam housing. Ensure the old O-ring comes out with the sensor (sometimes it may stick in the bore or fall into the engine, so double-check). Install a new O-ring on the new sensor (a quality replacement sensor typically includes a new O-ring). Lightly lubricate the O-ring with clean engine oil before installation – this helps it seat correctly and not pinch or tear.

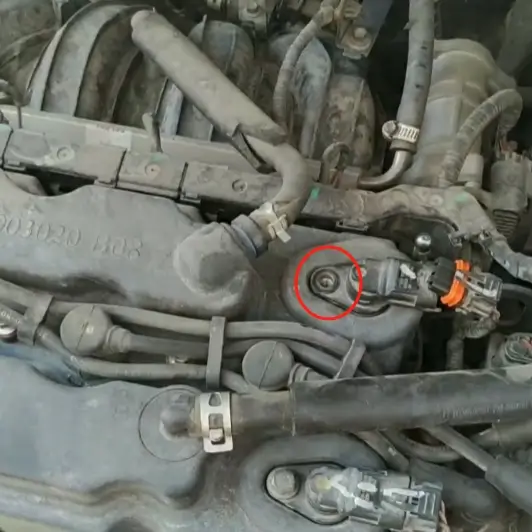

6. Install the New Sensor: Position the new camshaft sensor into the hole in the same orientation as the old one. Push it in until it fully seats (the O-ring should fit snugly). Reinstall the mounting bolt(s) and tighten them down. It’s best to torque to manufacturer specification (typically only about 5–10 N·m, check your manual) – do not overtighten, as the sensor’s flange or mounting ear can crack.

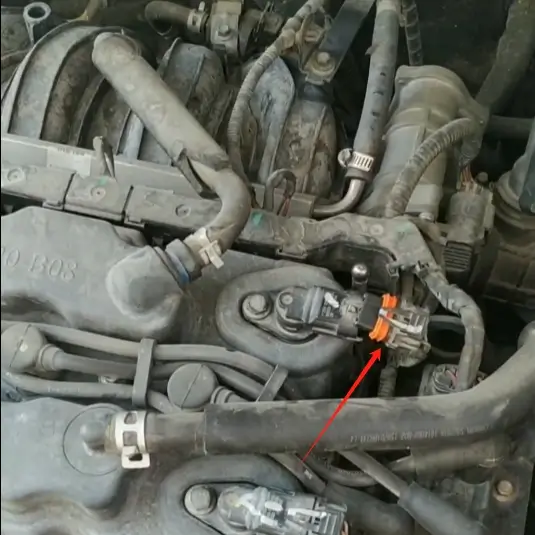

7. Reconnect the Connector: Plug the wiring harness connector back into the new sensor until it clicks. Make sure it’s secure. Re-secure any wire loom or clip that held the connector in place.

8. Reinstall Removed Parts: If you had to take off an air box, engine cover, or other components to access the sensor, put them back in place and tighten any clamps or screws.

9. Reconnect Battery and Clear Codes: Reattach the negative battery cable. Now, turn the ignition on and use your OBD-II scanner to clear any stored cam sensor fault codes. This will turn off the Check Engine Light if the issue is resolved.

10. Verify the Fix: Start the engine and ensure it runs smoothly. It should start quickly and idle normally. If your scan tool has live data or monitoring, you can check that the ECU is receiving a valid cam signal (no cam/crank correlation errors). Take the car for a short test drive. The check engine light should stay off (assuming no other issues), and the previous symptoms (stalling, misfiring, etc.) should be gone.

By following these steps, the new camshaft position sensor should be installed correctly, restoring proper engine timing information to the ECU. Always dispose of the old sensor properly. If any issues persist after installation, double-check the connections and consider performing the cam/crank relearn procedure if applicable (consult your service manual or dealer if unsure).

Types of Camshaft Position Sensors: Magnetic vs. Hall Effect

1. Inductive (Variable Reluctance) Sensor

• Passive design: consists of a coil and magnet detecting a toothed wheel.
• Outputs an AC sine wave as camshaft spins—larger amplitude with higher RPM.
• Advantages: reliable, durable, simple. Drawbacks: requires movement to generate signal, susceptible to lower accuracy at very low speeds .

2. Hall‑Effect Sensor

• Active sensor with magnet + semiconductor chip + signal electronics.
• Outputs clean digital pulses (HIGH/LOW) independent of speed.
• Advantages: compact, fast response, high accuracy, works with static fields.

3. Magneto‑Resistive (MRE) Sensor

• Similar to Hall sensors but using magneto‑resistive elements for sensing, also works with static fields.
• Offers higher sensitivity and precision.

4. Optical Sensor

• Uses LED light and photodiode to detect slots or marks on disc mounted to camshaft.
• Highest resolution and edge detection accuracy, but sensitive to dirt and debris.

5. AC-Output (Exciter Coil) Sensor

• A variation where the ECM excites the coil and reads back induced AC signal as slots pass—found in some vehicles like Vauxhall Ecote.

Comparison at a Glance

Why the Variety?

Each design balances ​cost​, ​durability​, ​accuracy​, and ​application needs​. Simpler engines perform well with inductive sensors, while high-performance or VVT engines often need the higher precision of Hall, MRE, or optical sensors to ensure precise fuel injection, ignition timing, and valve timing control.

Summary

• ​Inductive/Reluctance​: robust and cost-effective—but less precise at low speeds.
• ​Hall‑Effect​: accurate digital output, good at any speed.
• ​Magneto‑Resistive​: advanced, high sensitivity.
• ​Optical​: highest resolution, sensitivity to contamination.
• ​AC‑Output​: specialized variant relying on ECM excitation.

Let me know if you want details on how to test or diagnose each type, or what sensor is best for your vehicle!

FAQ about Camshaft Position Sensor

What is a Camshaft Position Sensor and What Does it Do?

The camshaft position sensor measures the exact position of the camshaft. This signal, in conjunction with the crankshaft position, is used to determine which stroke each cylinder is in. The engine control unit (ECU) needs this information to determine when to inject fuel and to define the right ignition timing. This coordination is crucial for optimal engine performance, supporting both power delivery and emissions reduction.

Where is the Camshaft Position Sensor Located?

The camshaft sensor is typically installed near the camshaft, in or near the cylinder head. Most commonly, it's mounted on the passenger side of the engine near the front. However, the exact location can vary depending on the vehicle make and model. In some vehicles, the sensor may be situated in less accessible areas, making diagnosis and replacement more challenging.

What Are the Different Types of Camshaft Position Sensors?

There are several types of camshaft position sensors currently in use:

Hall Effect Sensors: These utilize the Hall effect principle to detect the position of the camshaft. When the camshaft rotates, it interrupts the magnetic field of the sensor, generating a signal.

Inductive Sensors: These have the simplest design and are the most commonly used. They're passive devices comprised of a body, collar, magnet, and coil.

Magnetoresistive Sensors: These measure changes in magnetic resistance to determine the camshaft's position.

Optical Sensors: These deliver the most accurate edge detection among all sensor types.

What Are the Symptoms of a Failing Camshaft Position Sensor?

A failing camshaft position sensor can cause several noticeable issues:

Engine misfires and rough idling

Stalling or complete engine failure

Difficulty starting the vehicle

Check engine light illumination

Poor fuel economy

Loss of engine power

Shifting issues (the transmission may lock, preventing shifting)

What Causes a Camshaft Position Sensor to Fail?

The most common reasons for camshaft position sensor failure include:

Water in the connector or sensor

Broken wires or damaged electrical connections

Old age (sensors have no dedicated exchange interval)

Contamination from oil, debris, or moisture

Mechanical wear due to engine vibration and high temperatures

What Happens After a Camshaft Position Sensor is Replaced?

After installing a new camshaft position sensor, many vehicles require a "learning" period. The ECU needs to identify the exact position of the new sensor, as the hall sensing elements in the sensor housing may not be at the same position as in the old sensor. It could take 10-20 minutes with the vehicle running for the check engine light to turn off.

Can I Drive with a Bad Camshaft Position Sensor?

Driving with a faulty camshaft position sensor is not recommended. A malfunctioning sensor can cause unpredictable stalling while driving, which is potentially dangerous. Additionally, it can lead to increased fuel consumption, reduced engine performance, and potential long-term engine damage if ignored.
