Understanding Ball Bearings Types and Their Uses

A ball bearing is a device with small spheres. These spheres keep moving parts apart. It helps carry loads and lowers friction. Ball bearings let machines move smoothly. People find ball bearings in cars and washing machines. They are also in computers. The world market for ball bearings was over $19 billion in 2024. More than 28 billion ball bearings are made each year.

If ball bearings break, machines can stop working. Safety reports say 4.9% of machine failures are from ball bearing issues.

Key Takeaways

• Ball bearings help machines move by lowering friction. They also hold weight so machines last longer.
• There are many types of ball bearings for different jobs. Deep groove is for most uses. Angular contact works for fast speeds and mixed loads.
• Ball bearings can be made from steel, stainless steel, or ceramic. The material changes how strong and tough the bearing is. It also affects how well it handles heat and rust.
• Ball bearings are found in cars, planes, electronics, and home machines.
• Picking the right bearing depends on the load, speed, and where it will be used. You also need to think about size, fit, price, and how often it needs care.
• Putting in the bearing the right way and using oil or grease is important. This helps the bearing work well and last longer.
• If you hear noise, feel heat, or notice shaking, there may be a problem. These signs help you find issues early and stop machine damage.
• Checking ball bearings often and taking care of them keeps things safe. It also means less time fixing machines and saves money.

Ball Bearing Basics

What Is a Ball Bearing

A ball bearing is a kind of rolling-element bearing. It has small, hard balls inside. These balls keep two metal rings apart. The rings are called races. The balls roll between the inner and outer rings. This helps parts move with less friction. Most ball bearings have four main parts. There is an inner ring and an outer ring. There are also several balls and a cage. The cage holds the balls in place. It keeps the balls spaced out. The cage stops the balls from touching each other.

Most ball bearings use metric standards. Engineers pick different types for different speeds and loads.

Main Functions

Ball bearings are important in machines. They help support loads on a shaft. They let parts spin or move with little resistance. The balls inside roll instead of slide. This makes less friction. Machines run smoother and last longer. Ball bearings keep shafts in the right spot. They control the space between moving parts. This is important for safety and how well things work. In engines, they stop parts from rubbing together. This helps prevent damage and keeps machines working.

• Outer ring: connects to the part that does not move and guides the balls.
• Inner ring: connects to the part that spins and also has a raceway.
• Balls: roll between the rings and carry the load. They spin to lower friction.
• Cage/retainer: keeps the balls spaced out. It helps spread the load and stops the balls from touching. This lowers friction and wear.

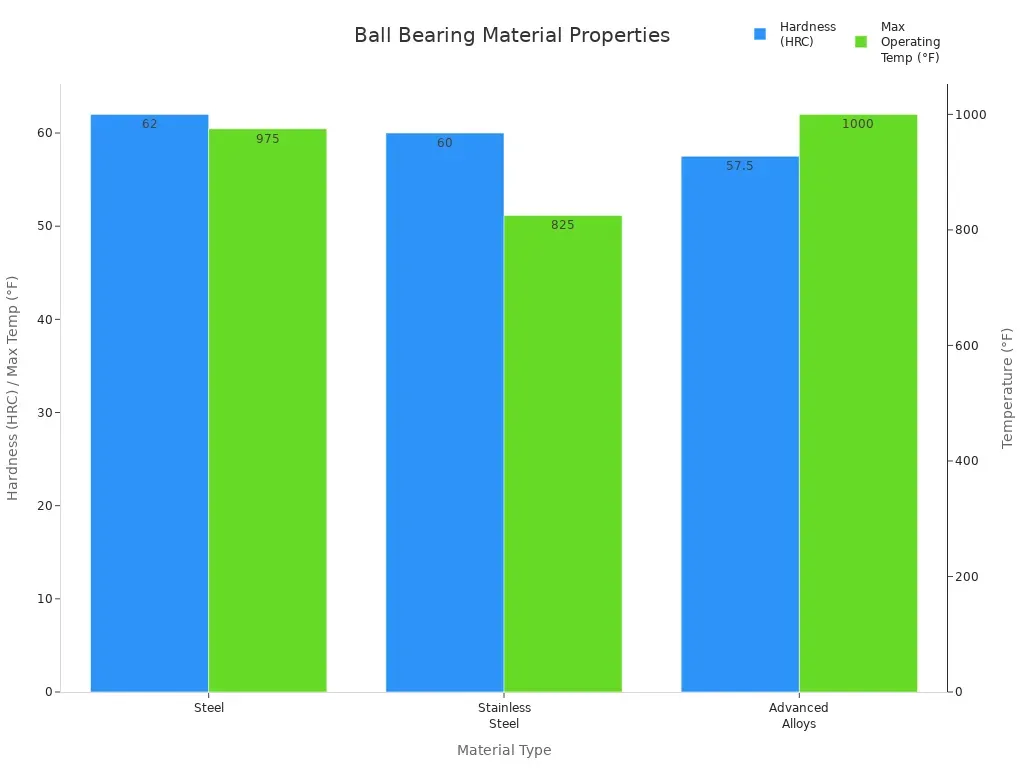

Common Materials

Manufacturers use different materials for ball bearings. The choice depends on where it will be used. Steel is the most common material. 52100 chrome steel is strong and lasts a long time. Stainless steel, like 440C, is also used a lot. It does not rust and works in wet places. Some ball bearings use special alloys for high heat or special jobs. Plastic and ceramic are used for light weight or fast spinning. Ceramic balls, like silicon nitride, are very hard and smooth. They cost more than other types.

Note: Picking the right material helps a ball bearing last longer. It also helps it work better in its place.

Where Ball Bearings Are Used

Ball bearings are important in many machines and industries. They help machines work better and last longer. Engineers use ball bearings where moving parts need less friction.

Industries that rely on ball bearings include:

• Aerospace: Airplanes and spacecraft need ball bearings in turbines and landing gear. These bearings work at high speeds and in hot or cold places.
• Automotive: Cars, trucks, and bikes have ball bearings in wheels and engines. Bearings help vehicles move safely and use less energy.
• Medical: Dental drills and surgical tools use ball bearings for smooth movement. Medical bearings use special materials to stay clean.
• Construction: Heavy machines and cranes use ball bearings to lift big loads. These bearings work in rough places.
• Food Industry: Conveyor belts and packaging machines use ball bearings. Food-safe oils keep these bearings safe for food.
• Office Equipment: Computers and printers use small ball bearings for quiet work. Ball bearings help these devices run smoothly.
• Transport: Trains, boats, and planes use ball bearings in engines and wheels. Bearings help save fuel and lower friction.

Tip: Ball bearings have been used for a long time. Ancient Egyptians used simple bearings to move stones. Leonardo DaVinci made early ball bearing designs for machines.

Devices that use ball bearings:

Different ball bearing types fit different jobs. Deep groove ball bearings work well in motors and fans. Angular contact bearings are good for pumps and gearboxes. Hybrid ceramic bearings are used in fast tools like dental drills.

Brands like SKF, Timken, Kaydon, and Browning make ball bearings from stainless steel and ceramic. These brands follow strict rules for quality and how well they work.

Ball bearings help machines in many areas work better and last longer. Their use in daily devices and new technology shows why they matter today.

Structure and Operation

Key Components

A ball bearing works because of several important parts. Each part has a special job that helps the bearing last longer and work better.

Inner and Outer Rings

The inner ring fits tightly on the shaft and spins with it. This ring gives the balls a smooth path to roll on. The outer ring stays still inside the machine housing. It holds the balls in place and supports both moving and resting loads. Both rings are made from strong steel. They go through careful shaping and heat treatment. This process makes them tough and able to resist wear.

Balls

The balls sit between the inner and outer rings. They roll as the shaft turns. This rolling action cuts down on friction. The balls also help spread the load evenly across the bearing. Because of their shape, the balls only touch the rings at small points. This design lowers stress and helps the bearing spin smoothly.

Cage

The cage, or retainer, keeps the balls spaced out. It stops the balls from bumping into each other. The cage also helps the balls stay in the right place as they move. Some cages are made from steel, while others use brass or special plastics. The right cage material depends on how fast the bearing spins and where it is used. The cage also helps hold oil or grease inside, which keeps the bearing quiet and smooth.

Note: Seals and shields protect the inside of the bearing from dirt and keep the grease in. Spacers help keep the balls in the right spot and control how much the bearing can move.

How Ball Bearings Work

Ball bearings reduce friction by letting the balls roll instead of slide. The balls move between the inner and outer rings along curved paths called raceways. This rolling action means less heat and wear. The balls carry both radial loads (pushing from the side) and axial loads (pushing along the shaft). The design of the bearing decides how much of each load it can handle. Lubrication, like oil or grease, helps the balls roll smoothly and keeps the bearing cool.

Load Types

Ball bearings handle different kinds of loads. The main types are:

Radial loads push against the side of the shaft. Axial loads push along the shaft. Some machines need bearings that can handle both at once. Engineers pick the right bearing type based on the kind of load and how much force it must support. For high-speed jobs, bearings with ceramic balls or smaller balls work best because they can spin faster and handle less heat.

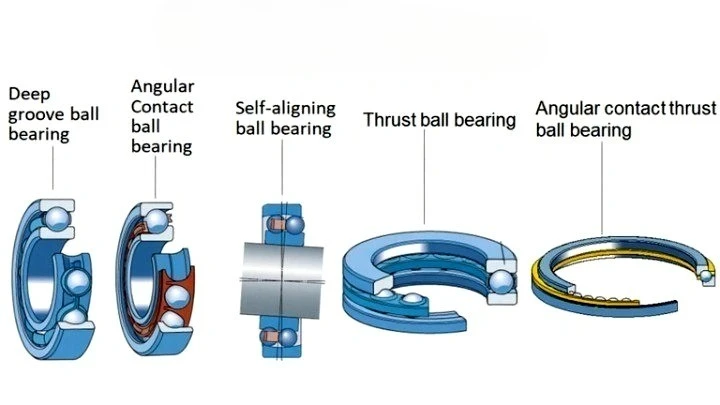

Ball Bearing Types

Image Source: unsplash

Deep Groove

Features

Deep groove ball bearings are the most popular type. They have a deep groove in both rings. This groove helps the balls move easily. These bearings can handle side and straight loads. Some important features are:

• They make machines run with less friction.
• They can hold loads from both sides.
• The groove lets them move fast and smooth.
• They do not make much noise or shake.
• They come with oil and rubber seals for easy care.
• They are easy to put in and last a long time.
• You can change the cage, oil, or material for different jobs.
• The balls touch the raceways at one point, so they spin fast.
• You can get them in single row or double row for different needs.

Deep groove ball bearings have seals and shields to help them last longer. Most cages are made from steel or resin to stay strong.

Uses

Deep groove ball bearings are used in many machines. They work well because they can handle different loads. They also run fast and smooth. Some common uses are:

• Electric motors and generators
• Cars and motorcycles
• Wind turbines and power tools
• Engines and gearboxes
• Medical devices and office machines
• Robots and farm equipment
• Conveyors and woodworking machines

Single row bearings are good for fast and quiet jobs. Double row bearings can hold more weight and help short shafts. Sealed bearings need little care.

Angular Contact

Features

Angular contact ball bearings have a special design. The balls and raceways meet at an angle. This lets them hold side and strong straight loads together. Some key features are:

• They can hold big loads and work fast.
• They are stiff and do not bend much under force.
• Preloading adds force to make them tighter and stronger.
• They have low friction and less shaking.
• You can get them in single, double, or four-point types.
• The angle is usually 30° or 40°. Bigger angles hold more straight load. Smaller angles are better for speed.
• They are harder to make and put in, so they cost more and need more space.

Picking the right preload and putting them in right is very important. These bearings need good oil care to last long.

Uses

Angular contact ball bearings are used where speed and accuracy matter. They are good for jobs with mixed loads. Some common uses are:

Single-row bearings hold straight loads in one way. Double-row bearings hold straight loads both ways and can take turning loads. You see these bearings in gearboxes, pumps, and motors where there are mixed loads and high speeds.

Self-Aligning

Features

Self-aligning ball bearings have a special shape. The outer ring is round and can move a little. The inner ring has two grooves for the balls and cage. These bearings can fix small mistakes in how parts line up. Some main features are:

• The round outer ring lets the bearing move and fix misalignment.
• The inner ring holds the balls in two grooves.
• They can handle up to 3 degrees of misalignment.
• The loose fit lowers friction and heat.
• They stay cool at high speeds and last longer.
• Sealed types keep out dirt and dust.
• They work well with uneven loads and stop sliding when starting or under light loads.
• They cannot hold big straight loads because the angle is small.

The round outer ring lets the bearing move and fix mistakes in how the shaft and housing line up.

Uses

Self-aligning ball bearings are used where parts may not line up right. They are helpful in many industries. Some common uses are:

• Machines like conveyors, pumps, fans, and compressors
• Car parts like steering, suspension, and gearboxes
• Mining and building machines
• Textile machines for spinning and making fabric
• Equipment for moving materials like conveyors
• Farm machines like tractors and combines
• Airplane parts like landing gear and turbine shafts

These bearings lower stress and wear, help machines last longer, and save money on repairs. They are easy to put in and work well with less friction and heat. This makes machines more reliable and efficient.

Thrust

Features

Thrust ball bearings are made to handle force along the shaft. This force is called axial load. These bearings have balls inside a cage. The balls sit between two ring-shaped raceways. The balls roll and help carry the load with less friction. There are two main types of thrust ball bearings. Unidirectional bearings handle force in one direction. Bidirectional bearings can take force from both directions. The cage keeps the balls apart. This helps the bearing spin faster.

Thrust ball bearings work best for medium axial loads. They do not hold much side force. Their design makes them easy to put in and cheap to use. Good alignment and oil help them last longer and run well.

Uses

Thrust ball bearings are found in many machines. They help with pushing or pulling along the shaft. You see them in car transmissions, fans, clutches, pumps, and compressors. They are also in home appliances and big machines.

• Car gearboxes use thrust ball bearings for axial forces.
• Water turbines and generators need them for smooth spinning.
• Big machines like cranes and drills use them for strong axial support.
• These bearings lower friction and keep machines cool at fast speeds.

Tip: Thrust ball bearings are simple to put in and take out. They come in many sizes for different machines.

Specialized Types

Some ball bearings are made for special jobs or tough places. These special types use different materials or designs. They solve problems that normal bearings cannot.

Miniature ball bearings fit in small spaces. They help medical tools and electronics work quietly and smoothly. Ceramic ball bearings can spin very fast. They resist heat and chemicals. These are used in planes, race cars, and chemical factories. Stainless steel bearings do not rust. They are used in food machines and boats.

Note: Engineers pick special ball bearings for extreme heat, cold, or wet places. The right bearing keeps machines safe and working longer.

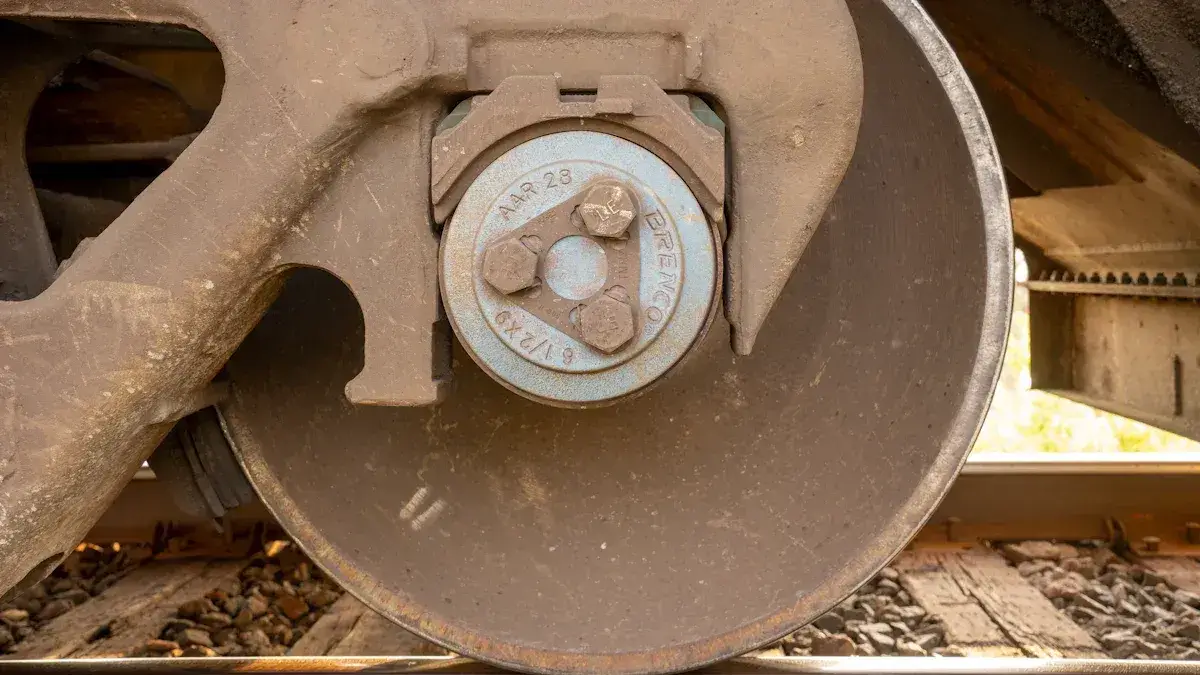

Applications

Image Source: pexels

Automotive

Ball bearings are very important in cars and trucks. Engineers put them in parts like alternators and air conditioning compressors. These bearings help parts spin easily. They handle sideways and straight forces. Ball bearings also help systems like HVAC units and power steering work well. Their strong design lets them work even when things get tough.

Engines and transmissions need bearings for more than just holding weight. Bearings help keep rotors in the right spot. They lower noise and shaking. Bearings also fix how stiff the shaft is. Electric cars need bearings that work at fast speeds and high heat. These cars need bearings that do not need much care. Ball bearings help engine parts and transmission pieces last longer and run smoothly.

Ball bearings in cars help lower friction and save fuel. They also make cars quieter. If bearings break, cars can stop or become unsafe.

Common automotive uses for ball bearings:

• Alternators
• Air conditioning compressors
• Power steering pumps
• HVAC systems
• Electric vehicle motors

Industrial Machinery

Machines in factories need ball bearings to work safely and well. These bearings help machines spin and carry heavy things. Power systems use ball bearings to keep machines running their best. If bearings break, machines can stop. This can cost a lot of money and time.

Bearings can fail because they get tired, are not lined up right, or do not have enough oil. Dirt can also cause problems. These issues can make machines shake or break. Engineers look for the main reason when bearings fail. Taking care of bearings and picking the right one helps machines last longer and stay safe.

Ball bearings help machines turn, lower friction, and carry weight. How good the bearings are and how they are cared for affects safety and how well machines work.

Home Appliances

Ball bearings help home appliances move parts quietly and smoothly. Washing machines, refrigerators, air conditioners, dishwashers, and vacuum cleaners all use them. The right size bearings hold the weight, lower friction, and keep things cool. This helps appliances work well for a long time.

Ball bearings make a smooth surface for moving parts. This lowers wear and noise. Good oil and careful setup stop bearings from breaking early. Deep groove ball bearings are used in electric motors in appliances. They handle sideways and straight forces. This helps motors work quietly and use less energy.

Ball bearings in home appliances help save power and make less noise. Good bearings mean fewer repairs and longer-lasting machines.

Appliances that use ball bearings:

• Washing machines
• Refrigerators
• Air conditioners
• Dishwashers
• Vacuum cleaners

Electronics

Electronic devices have small moving parts that need to work well. Cooling fans in computers and gaming consoles use special bearings. These bearings help the fan blades spin smoothly and quietly. When fans spin easily, they push air over hot parts like CPUs. This airflow keeps the device cool and safe.

Ball bearings in fans lower friction between the spinning shaft and the still part. Less friction means the fan uses less energy and makes less noise. Fans with these bearings last longer, even in hot places. For example, a fan with ball bearings can run for about 45,000 hours at high heat. Other types of bearings may stop working much sooner.

Modern electronics need fans that work in tough places. Ball bearings handle sideways and straight forces. They spin fast and keep working when it gets hot. New designs help these bearings resist rust and save power. This helps computers and other devices stay cool and last longer.

Tip: Ball bearings help fans work in any position. They work even if the fan is sideways or upside down. This makes them great for laptops and network equipment.

Devices like hard drives, printers, and projectors also use these bearings. They help moving parts work smoothly and last longer. Engineers pick ball bearings for high-performance electronics because they keep machines safe and reliable.

Key roles of ball bearings in electronics:

• Lower friction for smooth fan spinning
• Help steady airflow for cooling
• Handle fast speeds and heavy loads
• Make less noise and use less energy
• Help fans and devices last longer

Aerospace

Aerospace engineering uses advanced bearings in many systems. Airplanes, rockets, and satellites need parts that work in tough places. Bearings in these machines face very high speeds and big temperature changes. Some bearings spin up to 40,000 times each minute. Others work in freezing cold or strong heat.

Engineers put bearings in jet engines, rocket motors, and spacecraft controls. These bearings help parts move with little friction. They must last a long time and work safely. Some bearings in rockets need to survive over 100 launches. Others in satellites must work for more than 15 years without failing.

Aerospace bearings use strong materials and special coatings. They have tight size and shape limits. Each bearing must pass strict tests before use. Manufacturers follow rules from groups like the American Bearing Manufacturers Association (ABMA). They meet standards such as ABEC-9 for rings and ABMA Grade-3 for balls. These rules make sure bearings are precise and reliable.

Note: Aerospace companies need certifications like AS9100 or ISO 9001. These show that the bearings meet safety and quality rules.

Suppliers must keep records for every bearing. They track where the materials come from and how each bearing is made. This helps engineers find and fix problems quickly. Bearings in airplanes must meet strict failure rates. For example, only one engine shutdown is allowed for every four million hours of flight.

Common uses for bearings in aerospace:

1. Jet engines and turbines
2. Rocket engines and pumps
3. Satellite controls and reaction wheels
4. Landing gear and flight controls
5. Spacecraft gyroscopes

Engineers keep making aerospace bearings better. They use lighter materials and new coatings. These changes help planes and rockets fly safer and farther.

Selection Guide

Load and Speed

Choosing the right ball bearing starts with understanding the load and speed requirements. Engineers look at the type of load the bearing will face. Loads can be radial, axial, or a mix of both. Radial loads push sideways on the shaft. Axial loads push along the shaft. Some machines need bearings that handle both at the same time.

• Deep groove ball bearings work well for pure radial loads.
• Thrust ball bearings suit pure axial loads.
• Angular contact ball bearings handle combined loads.
• Roller bearings are better for heavy loads.

The size of the load matters. Ball bearings fit light to medium loads. Roller bearings are used for heavier jobs. Speed is also important. Bearings must run smoothly at the speeds needed for the machine. High-speed jobs need bearings that reduce friction and heat. Deep groove and cylindrical roller bearings are good for fast radial loads. Angular contact ball bearings work best for high-speed combined loads. Thrust bearings usually run at lower speeds.

Tip: Always check the bearing's speed rating and load capacity before making a choice. Using the wrong type can lead to overheating, noise, or early failure.

Environment

The environment affects how well a bearing works and how long it lasts. Temperature changes can cause the bearing and lubricant to expand or break down. If the temperature gets too high, the lubricant may thin out or harden, which increases friction and damages the bearing. Moisture from condensation or wet conditions can cause rust and oxidation. This weakens the bearing and ruins the lubricant.

Dirt, dust, and metal particles can get inside the bearing. These contaminants make the bearing wear out faster and can cause strange noises or damage. To protect the bearing, engineers use seals or shields. Seals keep out water and chemicals. Shields block dust and dirt. For wet or corrosive places, stainless steel or ceramic bearings are best because they resist rust and work well in tough conditions.

Note: Regular maintenance and the right lubricant help bearings last longer. Always pick a bearing and lubricant that match the temperature and moisture levels of the job.

Size and Fit

Picking the correct size and fit keeps the bearing working safely and smoothly. The fit describes how tightly the bearing sits on the shaft or in the housing. There are three main types of fit:

An interference fit holds the bearing tightly so it does not slip. This fit works best when the inner ring spins with the shaft. A clearance fit makes it easier to put the bearing in place but can cause problems if it is too loose. Transition fits are in between and depend on the job.

Using the wrong size can cause misalignment and too much friction. This leads to faster wear and shorter life. If the bearing is too loose, it may slip or make noise. If it is too tight, it can overheat. Always check the manufacturer's size charts and standards. Make sure the bore diameter, outer diameter, width, and tolerance match the needs of the machine.

• The right size and fit prevent vibration and noise.
• Good sizing helps the bearing handle loads evenly.
• Proper fit stops overheating and keeps the lubricant working.
• Correct sizing lowers the risk of sudden failure and keeps machines safe.

Tip: Engineers should always plan for changes in temperature. Shafts and housings can expand, so the fit must allow for this without causing bearing seizure.

Cost and Maintenance

Picking a bearing is about more than just size and load. Cost and how you take care of it are also important. Engineers think about the price and the money needed for upkeep. Some people buy cheaper bearings to save money. Cheaper bearings can work for light or short jobs. But they wear out faster and break more often. Better bearings cost more but last longer. They help machines run well and stop big problems.

How much care a bearing needs matters too. Some bearings need checks and new grease often. Others are sealed at the factory. Sealed bearings keep out dirt and hold grease inside. This means you do not have to fix them as much. They last longer and need less work.

Tip: Sealed bearings are great for places that are hard to reach.

Lubrication helps bearings move smoothly. Oil or grease lowers friction and stops damage. Without enough oil, bearings get hot and break. Engineers plan when to check bearings. They look at how often the machine runs and how easy it is to reach.

Machines that cannot stop need bearings that last a long time. Factories and hospitals use these kinds of bearings. Easy-to-reach bearings save time and money. Some machines use bearings that are easy to take out and put back in.

The table below shows how cost and care are different:

Engineers balance price, life, and care when picking bearings. They also think about load, speed, and where the machine is used. A smart choice saves money and keeps machines safe.

• Good bearings lower downtime and save money over time.
• Sealed bearings stop dirt and keep grease inside.
• How often you check bearings depends on use and how easy they are to reach.
• The right oil or grease keeps bearings from wearing out.

Choosing the best bearing for cost and care helps machines work better and last longer.

Maintenance and Safety

Installation

Putting in ball bearings the right way helps them last longer. Always clean your workspace and tools before you start. New ball bearings already have grease, so do not wash them. Keep ball bearings in their packages until you need them. This keeps out water and dirt. Be gentle when you handle ball bearings. If you drop one, do not use it. Use clean tools like special heaters or nuts to avoid damage.

Check that the shaft and housing are the right size and clean. Put seals in place to block dirt and water. Start by mounting with the rounded edge of the race. Press evenly on the race when you fit it. Never hit a ball bearing with a hammer. Make sure the outer race sits flat in the housing. Only use the grease or oil the maker suggests. After you finish, listen for strange sounds or feel for heat. Always use the same kind of ball bearing when you replace one. Follow safety rules and wear gear to protect yourself.

Best Practices for Ball Bearing Installation:

1. Clean your workspace and tools.
2. Keep ball bearings in their packages.
3. Handle ball bearings gently.
4. Use the right tools for mounting.
5. Check shaft and housing sizes.
6. Put seals in the right place.
7. Press evenly when mounting.
8. Never hit ball bearings.
9. Use the right grease or oil.
10. Watch for strange sounds or heat.
11. Replace with the same ball bearing.
12. Follow safety rules.

Tip: Good shaft and housing design helps ball bearings fit right. Easy mounting and removal make fixing things simpler.

Lubrication

Lubrication helps ball bearings move easily and stops them from wearing out. The best lubricant depends on the ball bearing type and where it works. Mineral and synthetic oils work for different speeds and loads. Thickeners help grease stick to the ball bearing. Additives protect against wear, rust, and heat. In tough places, special lubricants work better than regular ones.

• Deep groove ball bearings use lithium grease with additives for hot and cold places.
• Thrust ball bearings need good mineral oils for straight loads. Synthetic oils are best for heavy or hot jobs.
• Tapered roller bearings use semi-fluid grease for protection or full oil for fast speed and heat.

Some ball bearings need oil mist or splash lubrication. Others come with grease and need less care. Solid film lubricants like graphite powder work in very hot, cold, or high-pressure places. Grease is best when you cannot add more often. But grease can make it harder to start and slow down speed.

Note: Always use the lubricant the maker suggests. Check and change lubricant on time to stop damage.

Signs of Failure

Ball bearings give warning signs before they break. Listen for odd sounds like grinding, squealing, or humming. These noises often mean wear, bad fit, or not enough grease. Watch for shaking or vibration. High heat can mean the grease is breaking down or the load is too much. Look for damage like flaking, pitting, or rust. Leaking grease also means trouble.

Machines may use more power when ball bearings start to fail. Motors work harder and can get too hot. Production may slow down or stop if ball bearings break. Ignoring these signs can cause big problems, expensive fixes, and lost time.

Common Warning Signs:

• Strange sounds or shaking
• High heat during use
• Damage or leaking grease
• More power used
• Machines slow down or stop

Possible Consequences:

• Machines break down
• Motors burn out
• Shafts get damaged
• Higher power bills
• Delays in production

Regular checks help you find problems early. Use tools like vibration tests and heat cameras to spot trouble. Taking care of ball bearings keeps machines safe and working well.

Alert: Finding problems early and taking care of ball bearings stops costly breakdowns and keeps machines safe.

Safety Risks

Ball bearings help keep machines safe and working well. If people do not take care of them, safety problems can happen. Workers and engineers need to know about these dangers. This helps stop accidents and costly damage.

Common Safety Risks Linked to Ball Bearing Issues:

1. Machine Breakdown:
   If a bearing fails, the machine can stop fast. This can waste time and cost a lot to fix. In a factory, one broken bearing can stop the whole line.
2. Fire Hazards:
   Bearings can get too hot and start fires. When oil or grease is gone, friction goes up. Heat builds up fast. Sometimes, oil or grease can catch fire.
3. Personal Injury:
   Workers can get hurt if a bearing fails. A stuck bearing can break parts loose. Pieces can fly or machines can move suddenly. This can injure people nearby.
4. Equipment Damage:
   Worn or crooked bearings can break shafts and gears. These parts are expensive to fix. Damage can spread to other machine parts.
5. Noise and Vibration:
   Loud noise or shaking means something is wrong. Machines that shake or sound loud may have bad bearings. These signs mean bigger problems could come soon.
6. Environmental Hazards:
   Oil leaks from broken bearings can make floors slippery. Spilled oil can cause people to slip and fall. Leaks can also pollute the area.

Alert: Always follow safety rules when using machines. Wear safety gear and keep hands away from moving parts.

Table: Safety Risks and Their Consequences

How to Lower Safety Risks:

• Check bearings often for wear or damage.
• Change noisy or broken bearings right away.
• Use the right oil or grease and keep it clean.
• Teach workers to spot warning signs early.
• Put guards and shields on moving parts.
• Keep the work area clean and dry.

Engineers and technicians who know these risks keep machines safe. Regular checks and quick fixes stop accidents and protect people.

Tip: Finding bearing problems early saves lives and money. Never ignore strange sounds or heat from machines.

Knowing about ball bearing types and how they are built helps machines stay safe and work well. If you follow tips for picking and caring for ball bearings, you can stop expensive problems. You should talk to experts or companies if you have special questions.

Good choices and regular checks help machines last longer.

• Find out what ball bearings can do.
• Use easy care tips.
• Get help from professionals.

FAQ

What is the main job of a ball bearing?

A ball bearing helps parts move smoothly. It lowers friction and supports loads. Machines use ball bearings to spin or move with less effort.

How can someone tell if a ball bearing is failing?

People may hear grinding or squealing sounds. Machines may shake or get hot. Oil may leak. These signs mean the bearing needs checking or replacing.

Can ball bearings rust?

Yes, ball bearings can rust if they get wet or dirty. Stainless steel and ceramic bearings resist rust better. Keeping bearings clean and dry helps prevent rust.

What is the difference between deep groove and angular contact ball bearings?

Deep groove bearings fit most uses. Angular contact bearings work better for mixed loads.

How often should someone lubricate ball bearings?

Lubrication needs depend on the machine and bearing type. Sealed bearings need little care. Open bearings may need oil or grease every few months. Always follow the maker’s advice.

Are ceramic ball bearings better than steel ones?

Ceramic ball bearings spin faster and last longer. They resist heat and rust. They cost more than steel bearings. People use them in high-speed or special machines.

Why do engineers choose self-aligning ball bearings?

Self-aligning ball bearings fix small mistakes in how parts line up. They help machines run smoothly even if shafts bend or shift. These bearings lower stress and last longer.

Joey Adler
